EV600 ELECTRIC DUMPER

KEY SPECIFICATIONS

600kg Rated Load

0.3m³ Bucket Capacity

320kg Operating Weight

PRODUCT HIGHLIGHTS

01 HIGH PERFORMANCE ELECTRIC DRIVE Powered by an upgraded high-torque electric motor and battery system, delivering zero emissions and extended operating time.

02 HEAVY DUTY LOAD CAPACITY Enhanced chassis structure and reinforced bucket designed to transport heavier construction and agricultural loads effortlessly.

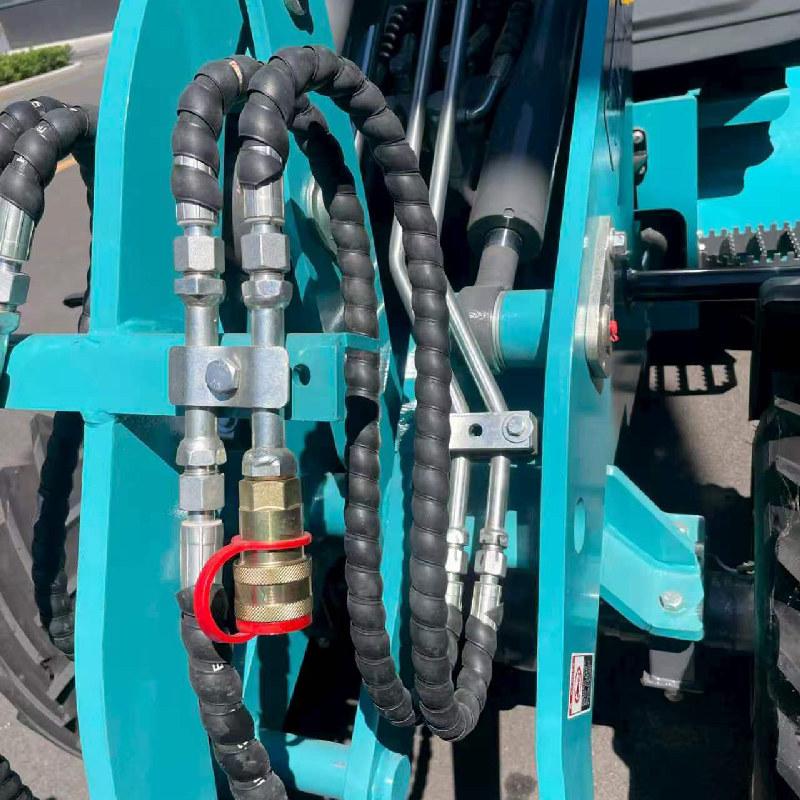

03 HYDRAULIC TIPPING BUCKET Features a smooth hydraulic dumping system for quick and efficient material discharge on job sites.

TECHNICAL SPECIFICATIONS – EV600 ELECTRIC DUMPER

1. General Specifications

Specification Item	Value / Standard
Motor Type	Brushless DC Motor
Rated Motor Power	1.5 kW / 2.0 kW
Battery Voltage / Capacity	48V / 32Ah – 45Ah
Rated Load	600 kg
Bucket Capacity	0.3 m³
Operating Weight	320 kg

2. Dimensions

Specification Item	Value
Overall Length	1,450 mm
Overall Width	820 mm
Overall Height	1,050 mm
Track / Wheel Width	720 mm
Min. Ground Clearance	130 mm
Bucket Size (L × W × H)	1,080 × 720 × 500 mm

3. Working & Battery Performance

Specification Item	Value
Max. Travel Speed	10 km/h
Continuous Working Time	6 – 8 hours
Charging Time	6 – 8 hours
Max. Gradeability	20°
Tipping System	Hydraulic Dumping

4. Transmission & Chassis

Specification Item	Value / Description
Drive System	Rear-Wheel Drive / All-Wheel Drive
Braking System	Electromagnetic Brake
Tire Size (Front / Rear)	4.00-10 / 4.00-8
Steering Type	Manual Handle / Articulated Steering
