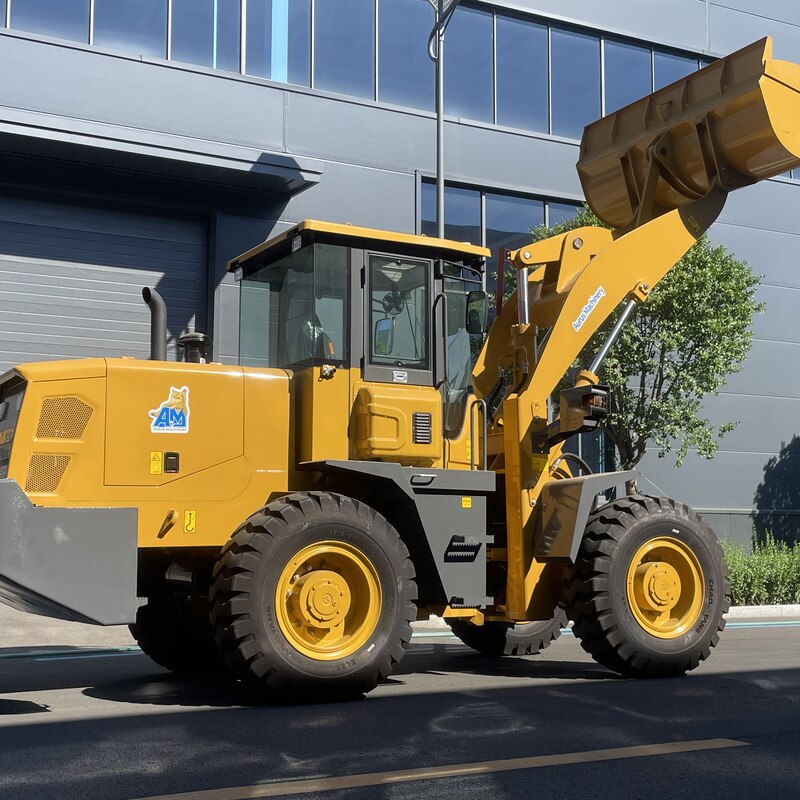

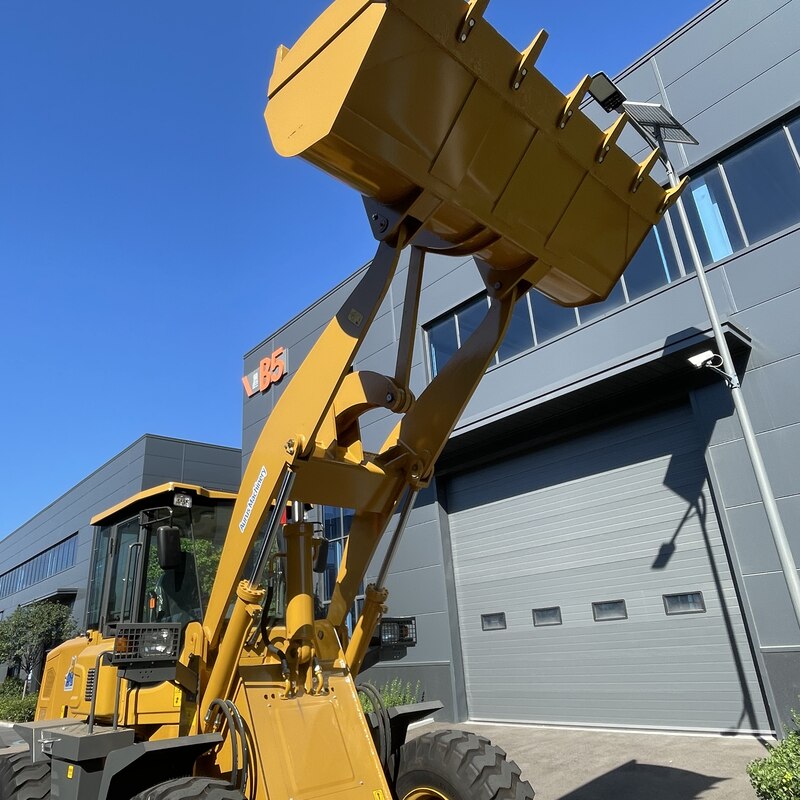

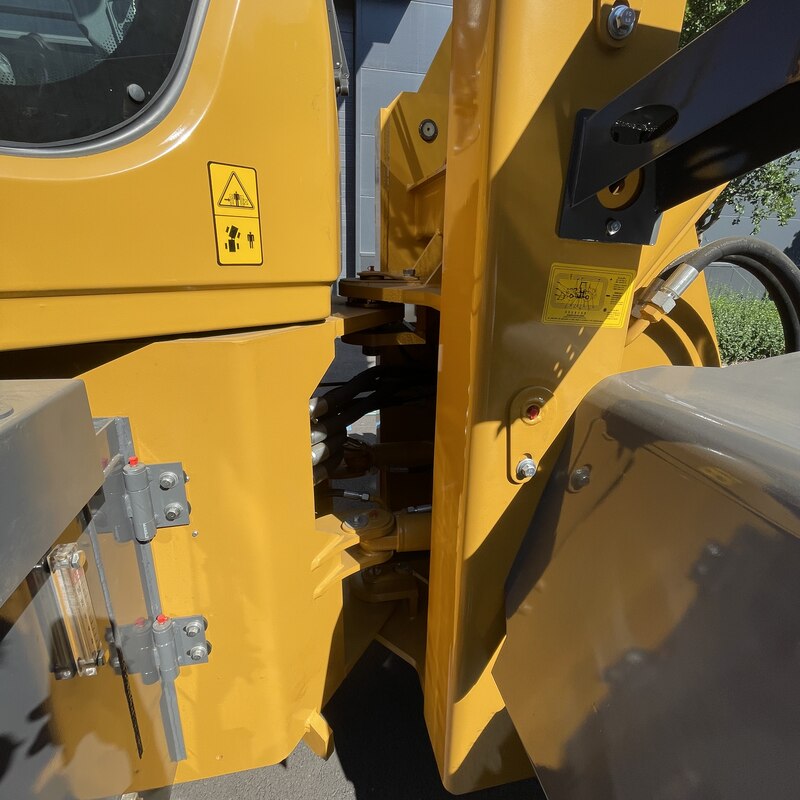

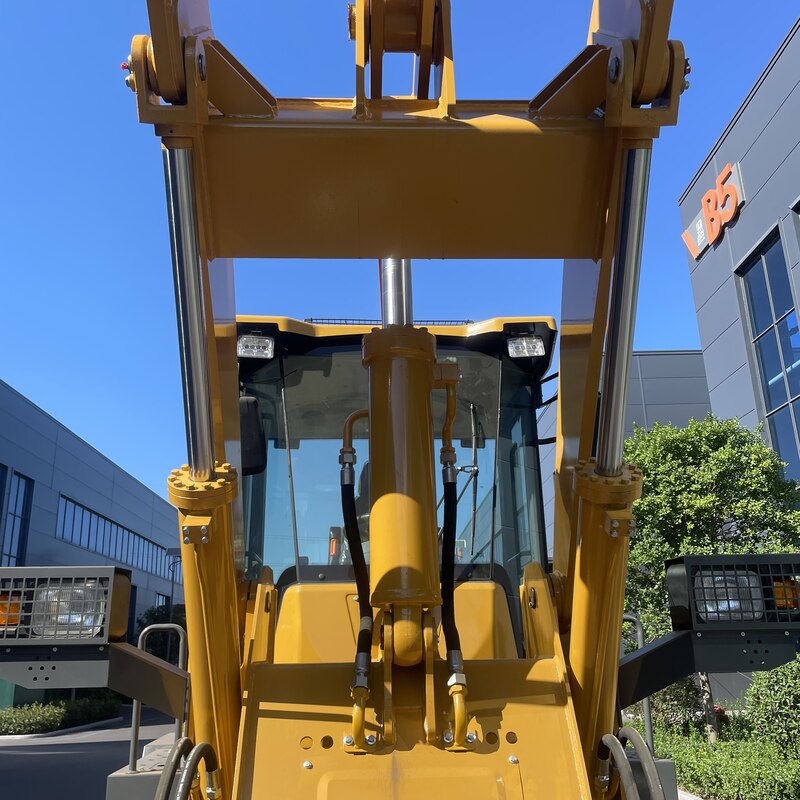

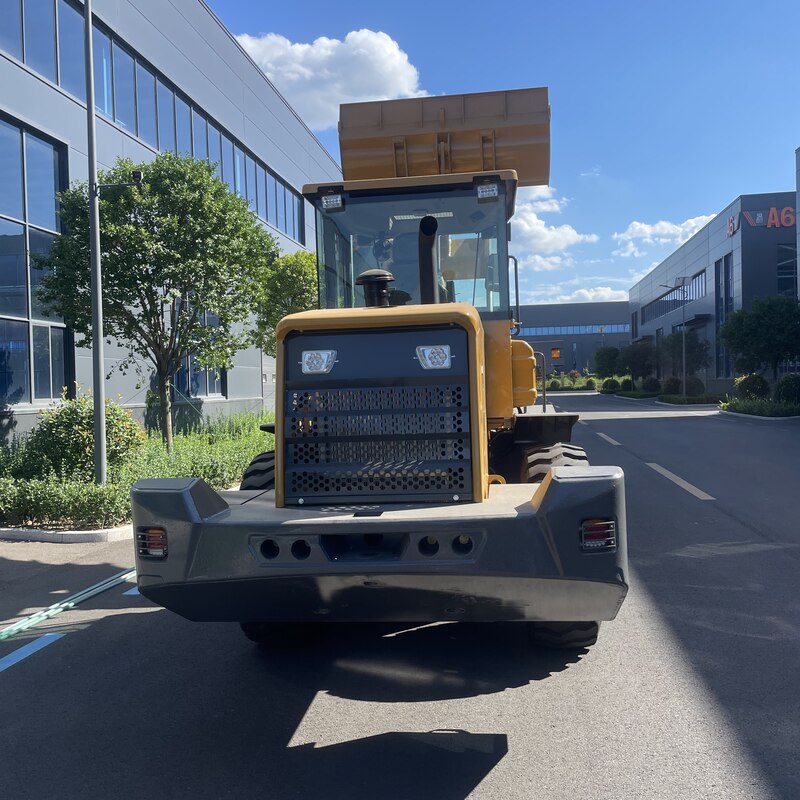

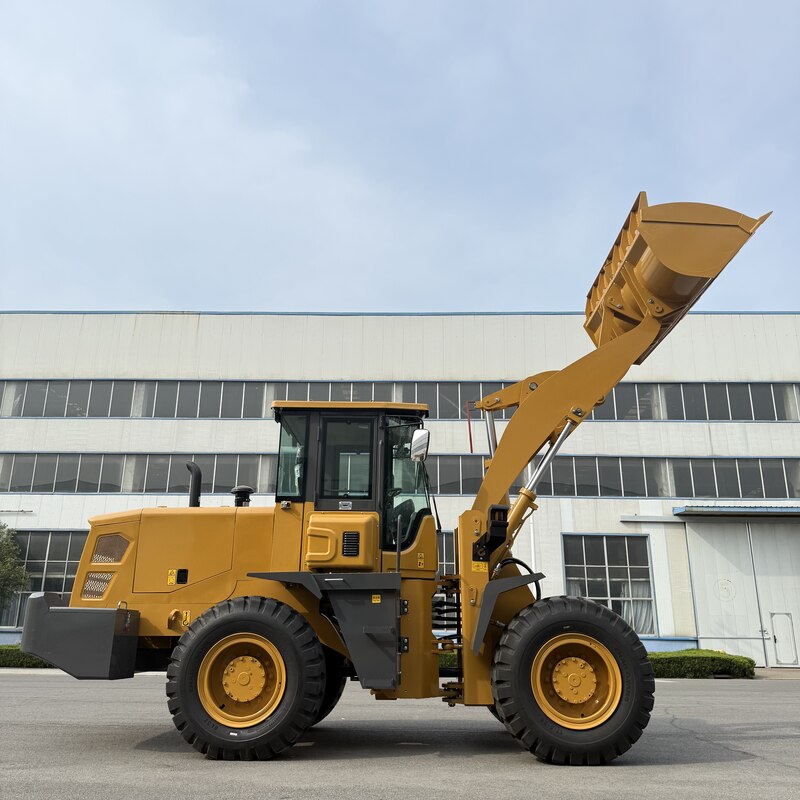

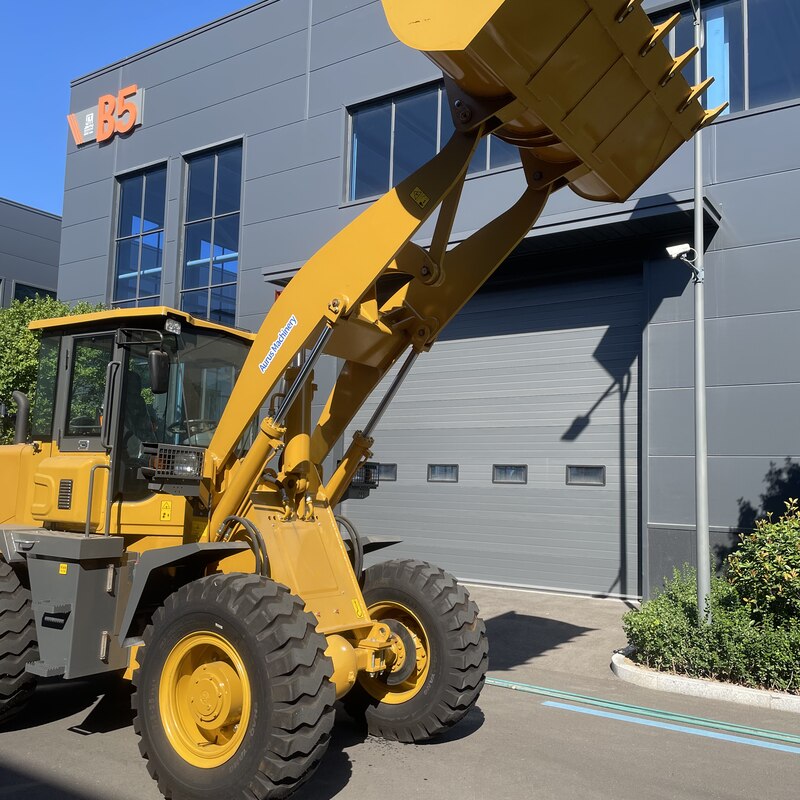

AM930 WHEEL LOADER

AM930 WHEEL LOADER - Image 2

AM930 WHEEL LOADER - Image 3

AM930 WHEEL LOADER - Image 4

AM930 WHEEL LOADER - Image 5

AM930 WHEEL LOADER - Image 6

AM930 WHEEL LOADER - Image 7

AM930 WHEEL LOADER - Image 8

AM930 WHEEL LOADER - Image 9

AM930 WHEEL LOADER - Image 10

AM930 WHEEL LOADER - Image 11

AM930 WHEEL LOADER - Image 12

AM930 WHEEL LOADER - Image 13

AM930 WHEEL LOADER - Image 14

AM930 WHEEL LOADER - Image 15

AM930 WHEEL LOADER - Image 16

AM930 WHEEL LOADER

KEY SPECIFICATIONS

3000kg Rated Load

2.0m³ Bucket Capacity

10100kg Operating Weight

PRODUCT HIGHLIGHTS

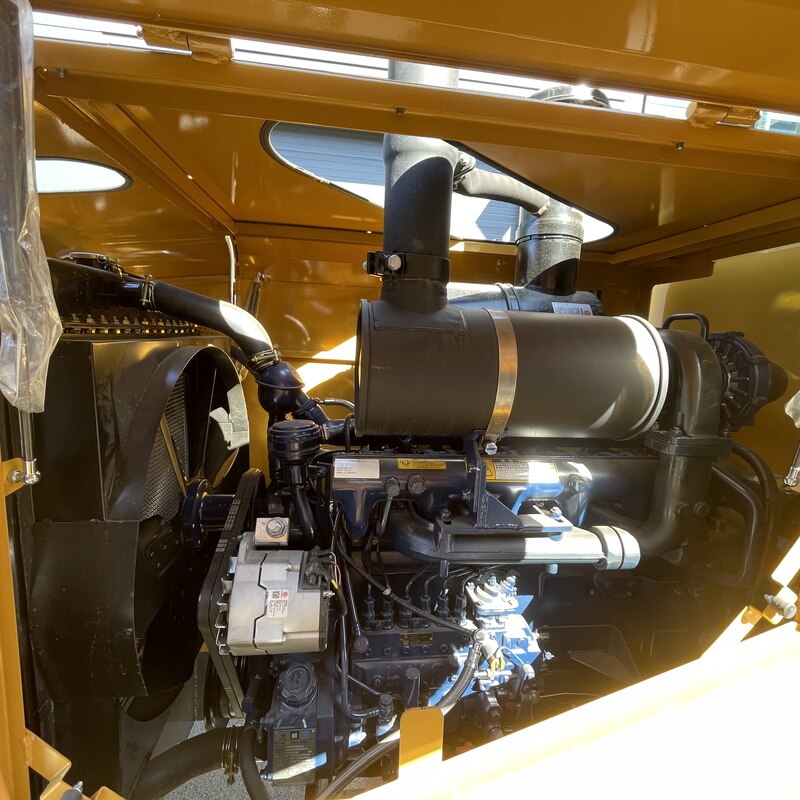

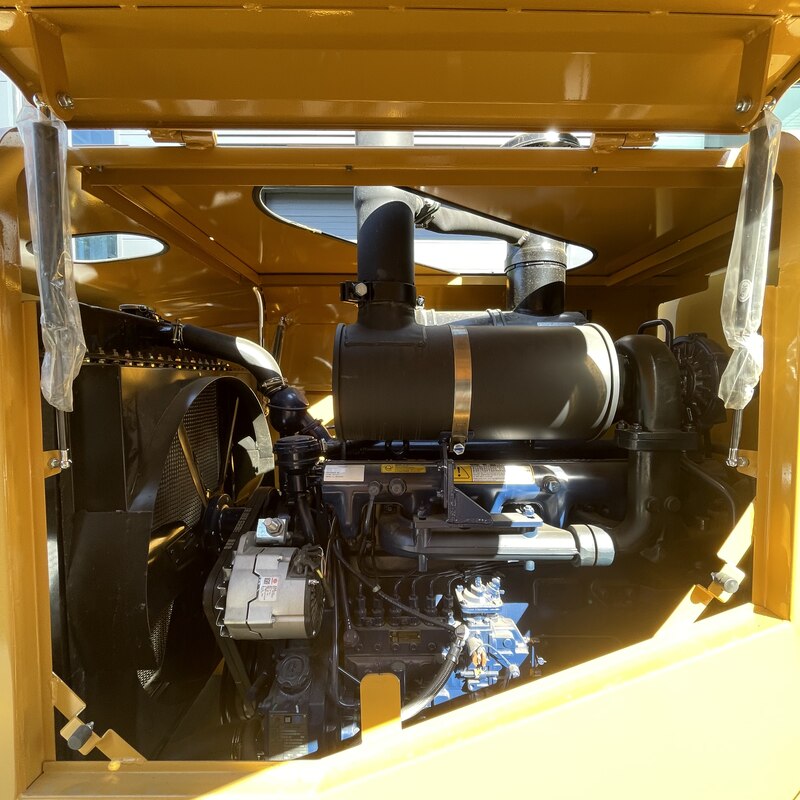

01 WEICHAI ENGINE POWER Powered by a high-performance Weichai engine delivering 92 kW output, engineered for heavy-duty applications.

02 AIR BRAKE & HEAVY-DUTY AXLE Air brake system paired with heavy-duty reduction axles ensures robust braking force and maximum stability.

03 FULL HYDRAULIC STEERING Full hydraulic steering system with 35° steering angle provides effortless, smooth, and flexible maneuverability.

TECHNICAL SPECIFICATIONS – AM930 WHEEL LOADER

1. General Specifications

Specification Item	Value / Standard
Engine (Standard)	Weichai National II
Engine Power (Standard)	92 kW / 2200 rpm
Rated Load	3,000 kg
Bucket Capacity	2.0 m³
Operating Weight	10,100 kg
Number of Cylinders	6

2. Dimensions

Specification Item	Value
Vehicle Length	7,200 mm
Vehicle Width	2,450 mm
Vehicle Height	3,200 mm
Wheelbase	2,850 mm
Track Width	1,850 mm
Min. Ground Clearance	430 mm
Bucket (L × D × H)	2,450 × 750 × 1,150 mm
Min. Turning Radius	6,000 mm

3. Working Performance

Specification Item	Value
Max. Dumping Height	3,850 mm
Dumping Reach	1,050 mm
Dumping Angle	35°
Gradeability	15°
Max. Travel Speed	38 km/h
Min. Travel Speed	8 km/h
Total Cycle Time	≤ 11.5 s
Idle Lifting Time	≤ 5.8 s
Idle Lowering Time	≤ 4.5 s
Idle Dumping Time	≤ 1.2 s

4. Transmission & Steering

Specification Item	Value / Description
Transmission Type	Fixed Shaft Power Shift
Shift Gears	2 Forward / 1 Reverse
Braking System	Air Brake
Axle Type	Heavy-Duty Reduction Axle
Tire Size	17.5-25
Front Tire Pressure	0.33 MPa
Rear Tire Pressure	0.30 MPa
Steering Type	Full Hydraulic Steering
Steering Angle	35°
System Working Pressure	16 MPa

5. Capacities

Tank / System	Capacity
Fuel Tank	120 L
Hydraulic Oil Tank	120 L
Engine Oil	11 L
Gearbox Oil	32 L
Axle Oil (Each)	18 L
Brake System Oil	3 L
