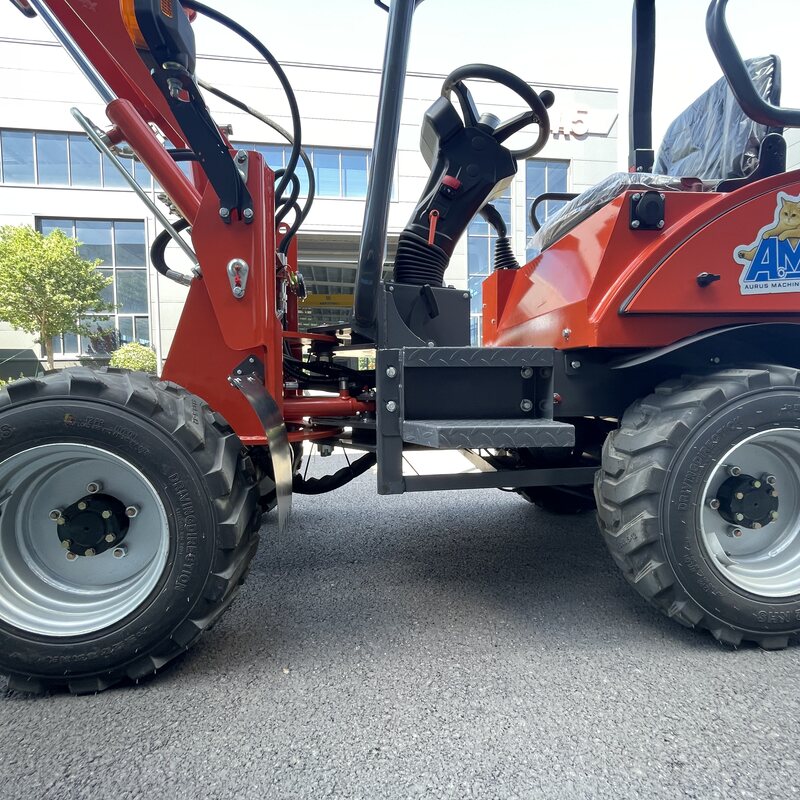

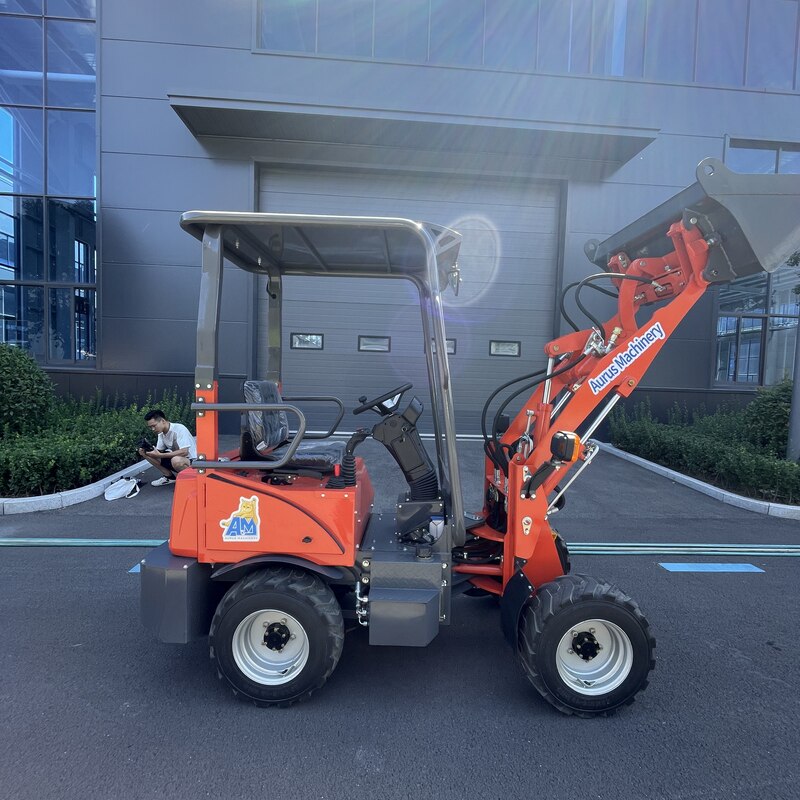

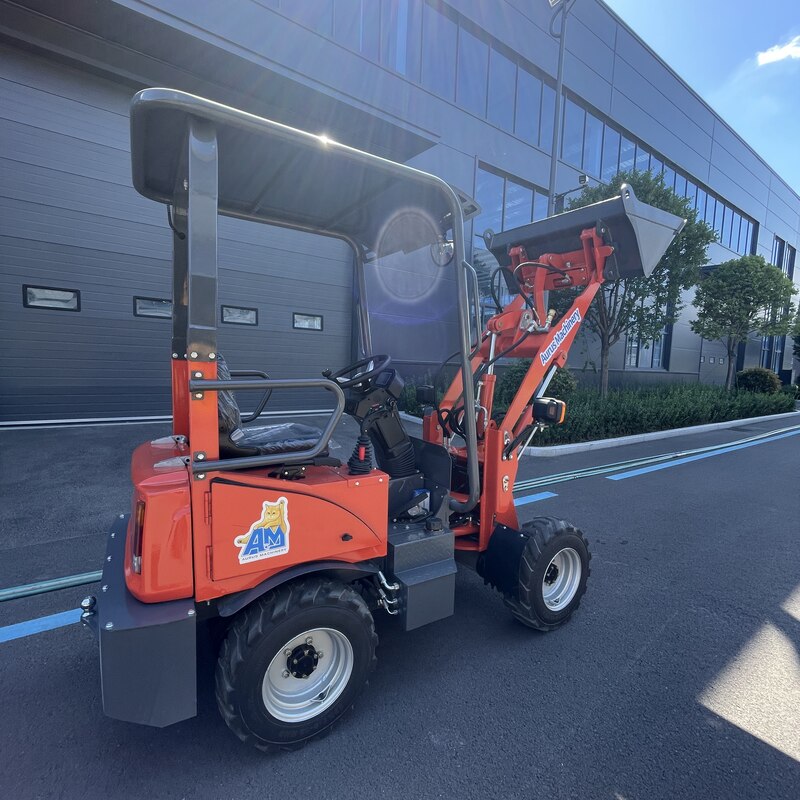

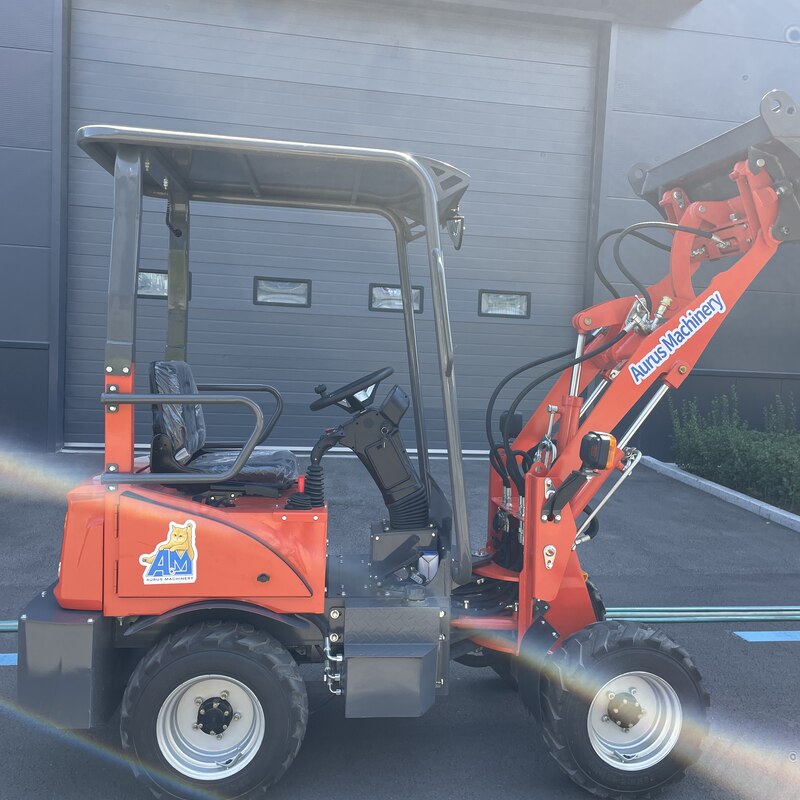

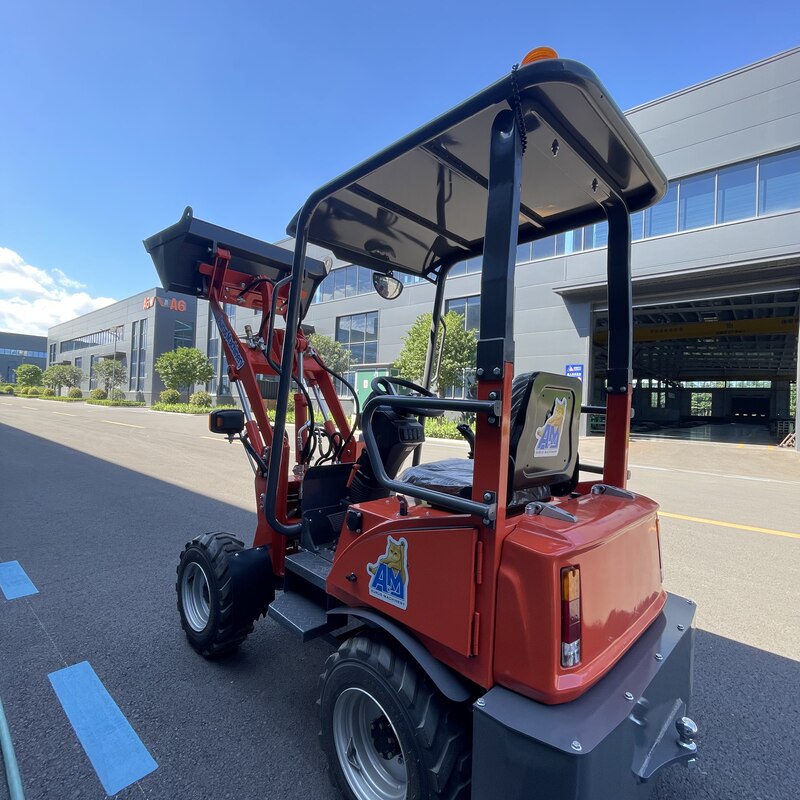

EV400 ELECTRIC DUMPER
KEY SPECIFICATIONS
400kg Rated Load
0.2m³ Bucket Capacity
280kg Operating Weight
PRODUCT HIGHLIGHTS
01 ZERO EMISSION ELECTRIC DRIVE Powered by a high-efficiency electric motor and lithium/lead-acid battery pack, offering zero emissions and ultra-low noise operation.
02 COMPACT & MANEUVERABLE Ultra-compact body design allows easy passage through narrow doors, hallways, and tight construction or agricultural spaces.

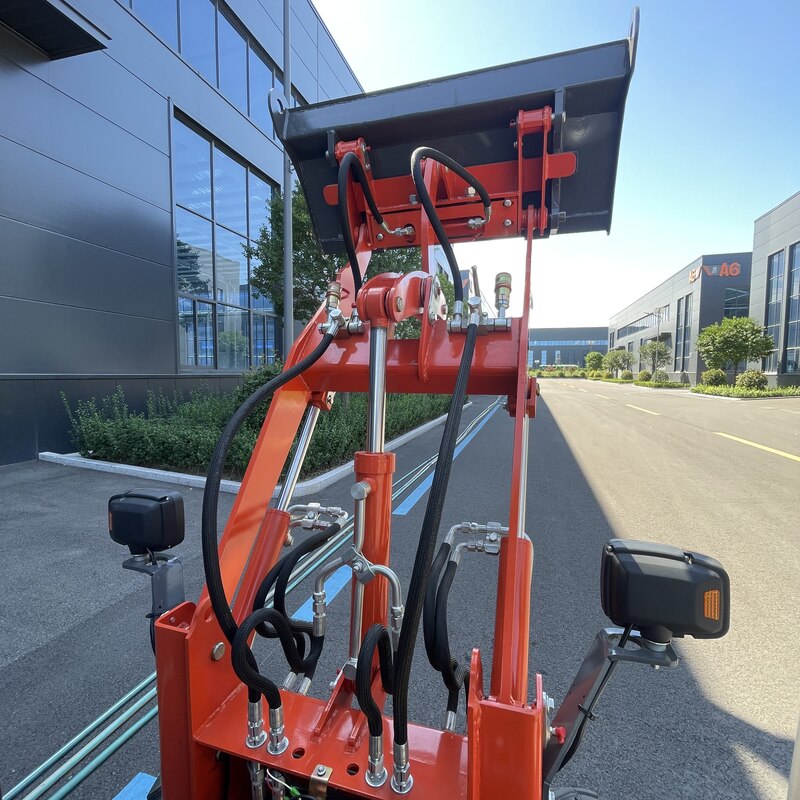

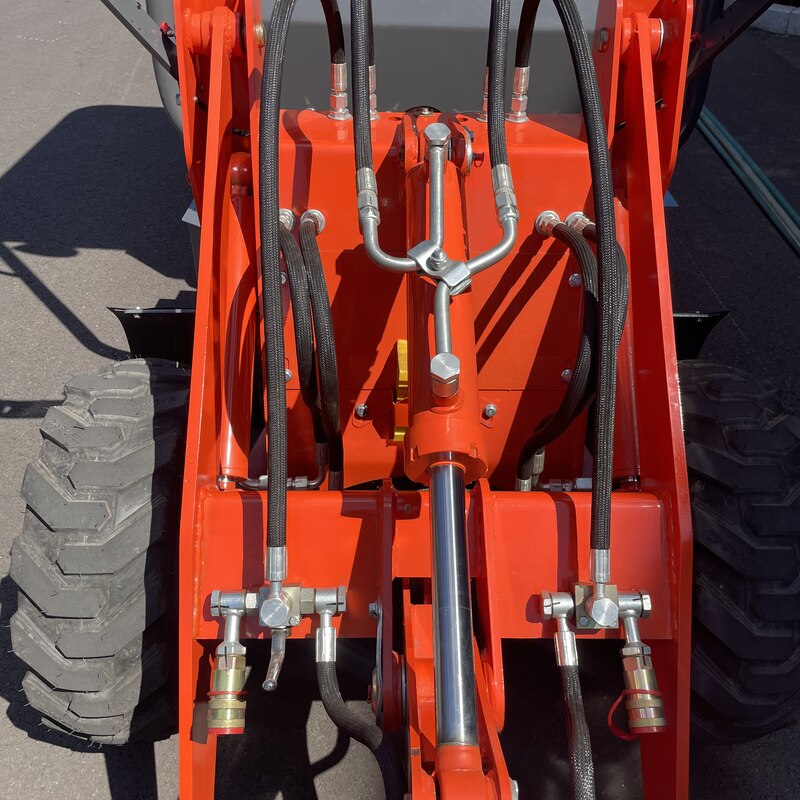

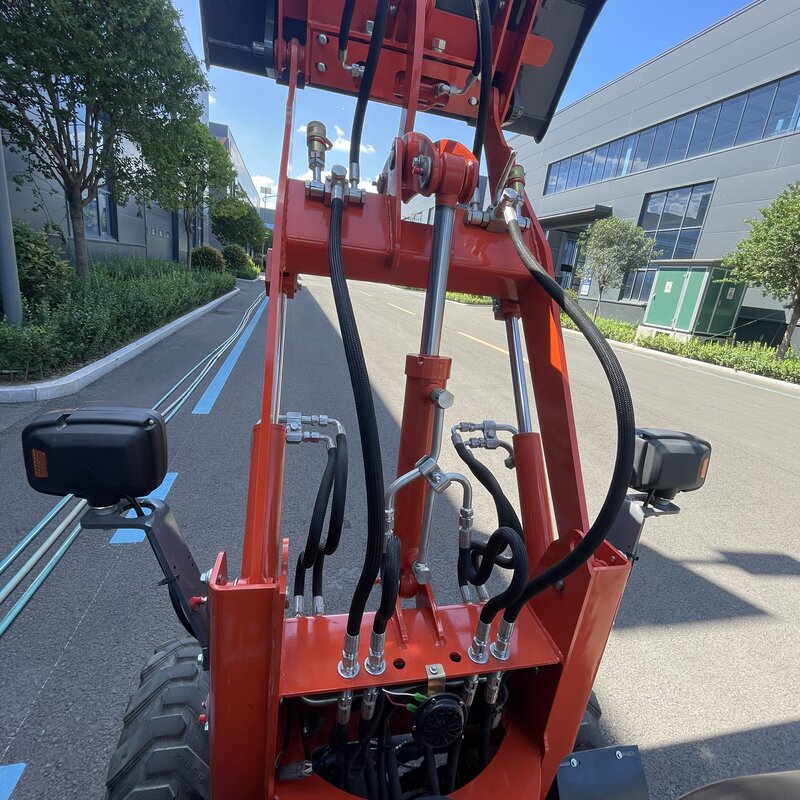

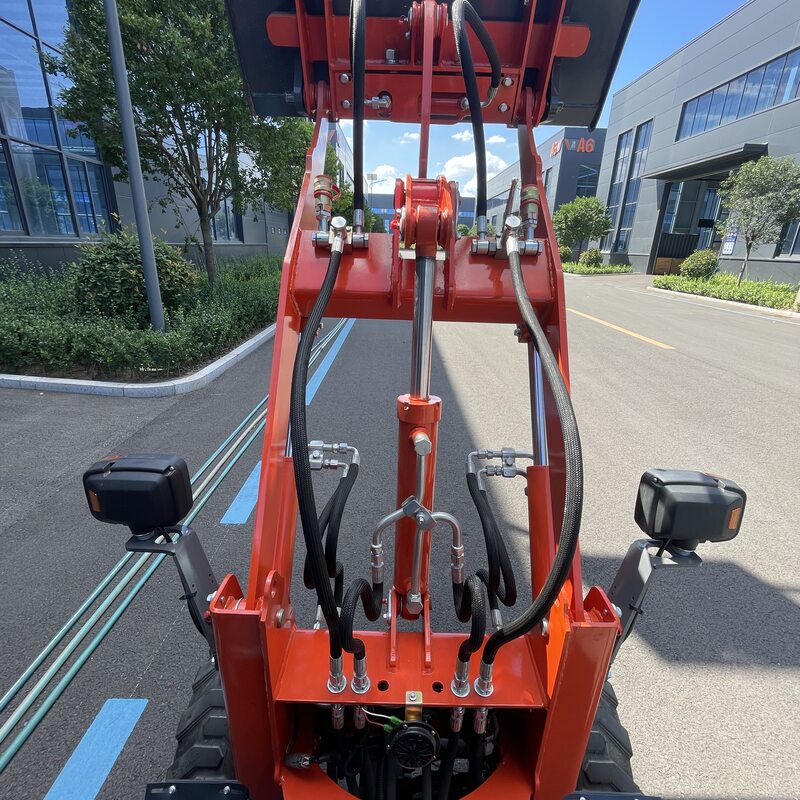

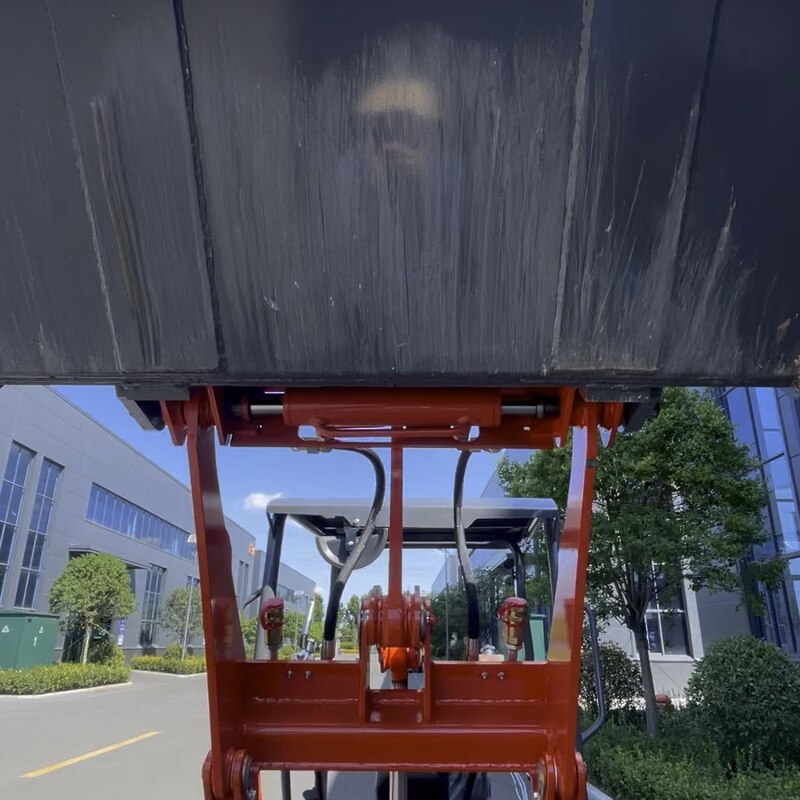

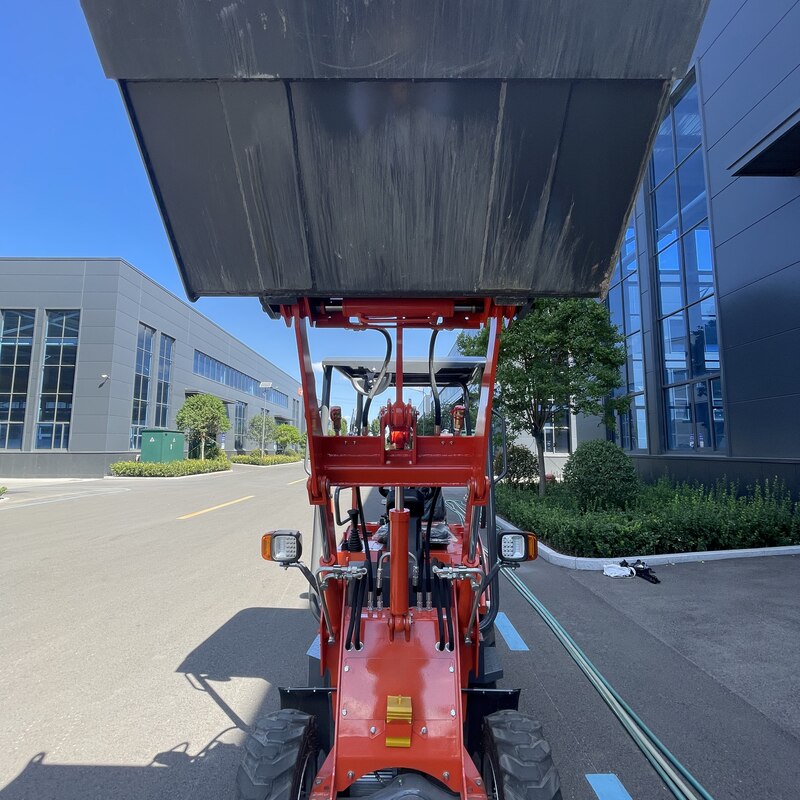

03 HYDRAULIC TIPPING BUCKET Features smooth hydraulic lifting for rapid unloading, greatly enhancing productivity in indoor and garden applications.
TECHNICAL SPECIFICATIONS – EV400 ELECTRIC DUMPER
1. General Specifications
| Specification Item | Value / Standard |
| Motor Type | Brushless DC Motor |
| Rated Motor Power | 1.0 kW / 1.5 kW |
| Battery Voltage / Capacity | 48V / 20Ah – 32Ah |
| Rated Load | 400 kg |
| Bucket Capacity | 0.2 m³ |
| Operating Weight | 280 kg |
2. Dimensions
| Specification Item | Value |
| Overall Length | 1,350 mm |
| Overall Width | 780 mm |
| Overall Height | 1,000 mm |
| Track / Wheel Width | 680 mm |
| Min. Ground Clearance | 120 mm |
| Bucket Size (L × W × H) | 980 × 680 × 450 mm |
3. Working & Battery Performance
| Specification Item | Value |
| Max. Travel Speed | 8 km/h |
| Continuous Working Time | 6 – 8 hours |
| Charging Time | 6 – 8 hours |
| Max. Gradeability | 20° |
| Tipping System | Hydraulic / Manual Assist |
4. Transmission & Chassis
| Specification Item | Value / Description |
| Drive System | Rear-Wheel Drive / All-Wheel Drive |
| Braking System | Electromagnetic Brake |
| Tire Size (Front / Rear) | 4.00-8 / 3.50-6 |

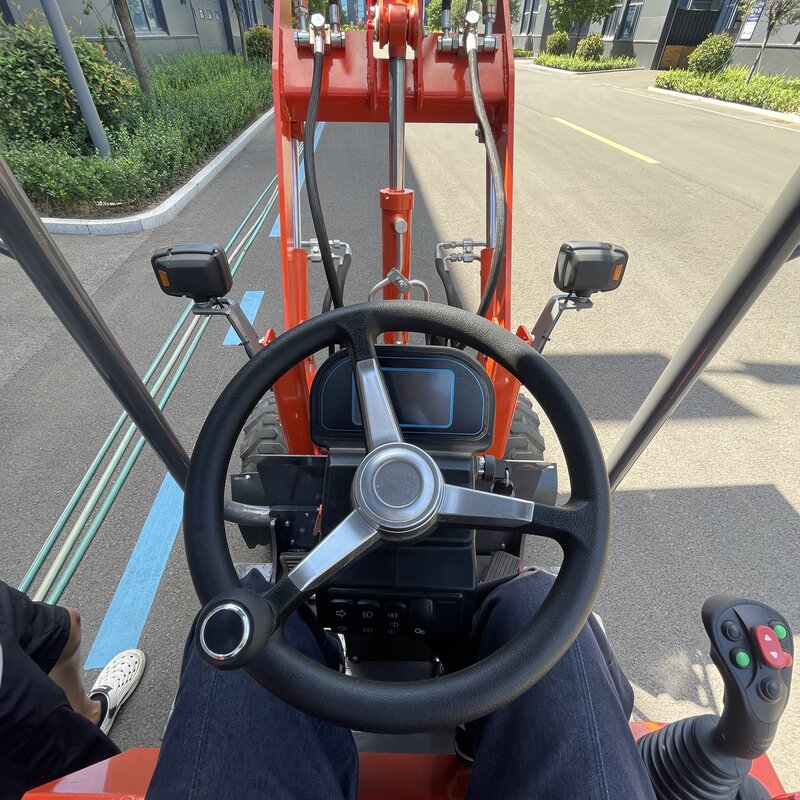

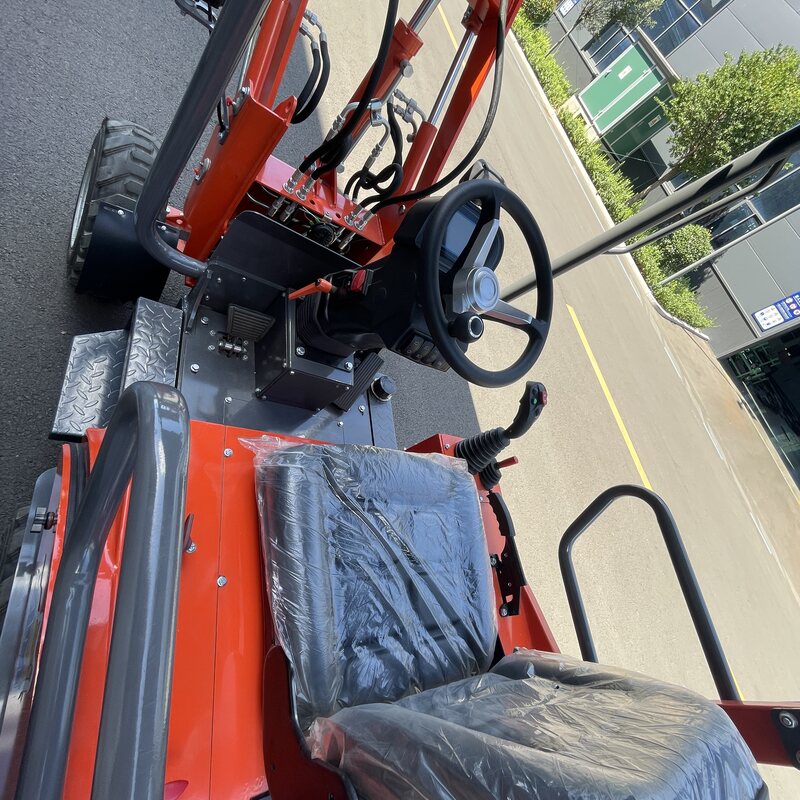

| Steering Type | Manual Handle Steering |
