EV10 ELECTRIC EXCAVATOR

KEY SPECIFICATIONS

1000kg Operating Weight

0.02m³ Bucket Capacity

7.5kW Electric Motor

PRODUCT HIGHLIGHTS

01 ZERO EMISSION & LOW NOISE Powered by a pure electric motor system delivering zero exhaust emissions and low noise operation, ideal for indoor and urban job sites.

02 COMPACT & TIGHT-SPACE OPERATION Compact body with standard rear-tail or zero-tail swing capability allows efficient digging along walls and in confined areas.

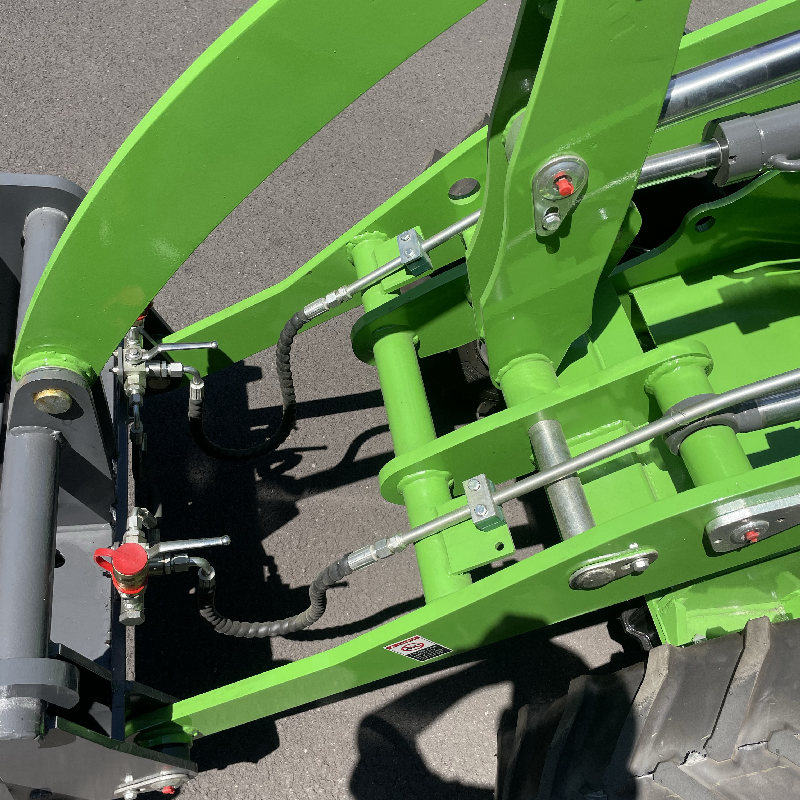

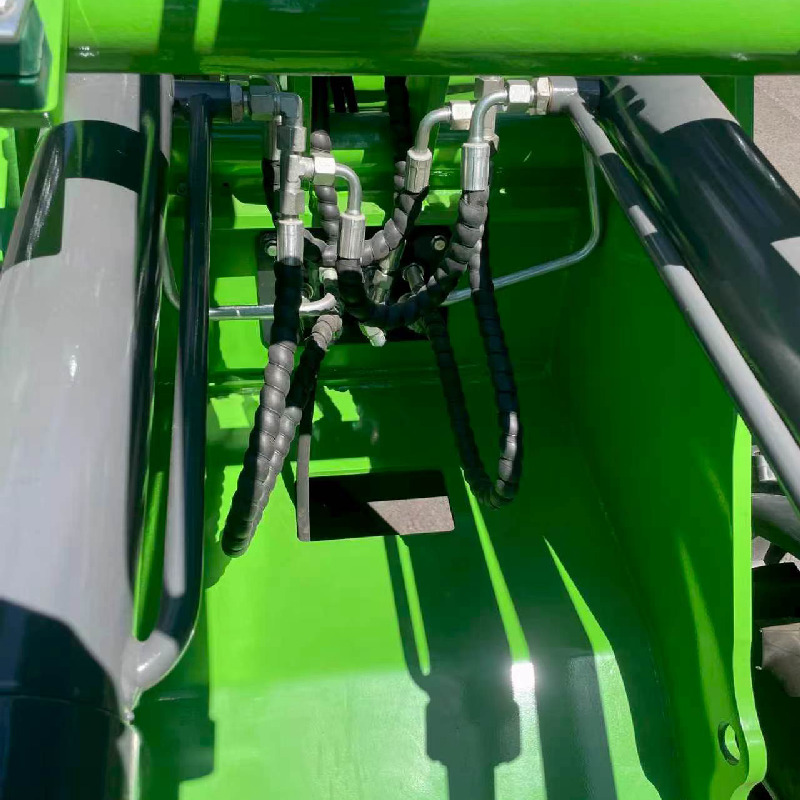

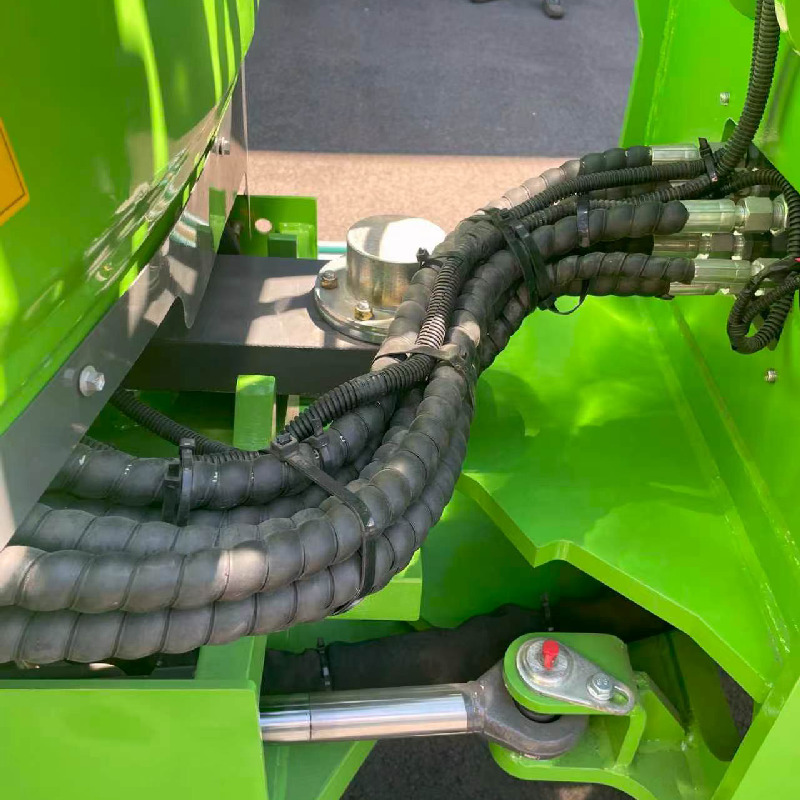

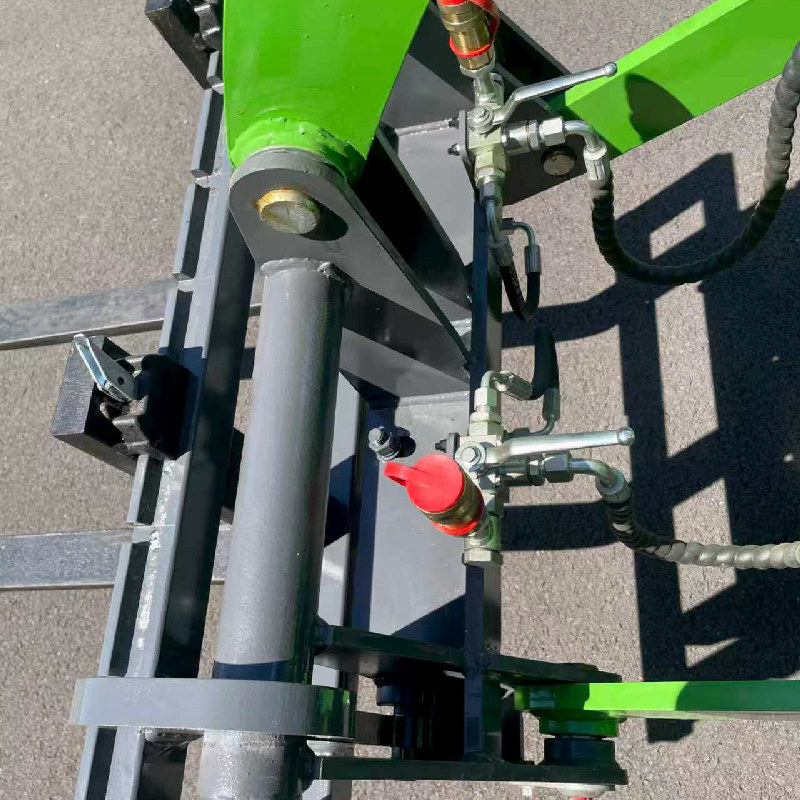

03 HYDRAULIC MULTI-FUNCTION ATTACHMENT READY Equipped with auxiliary hydraulic pipelines to support various attachments such as hydraulic breakers, augers, and quick couplers.

TECHNICAL SPECIFICATIONS – EV10 ELECTRIC EXCAVATOR

1. General Specifications

Specification Item	Value / Standard
Motor Type	High-Efficiency Electric Motor
Rated Power	7.5 kW

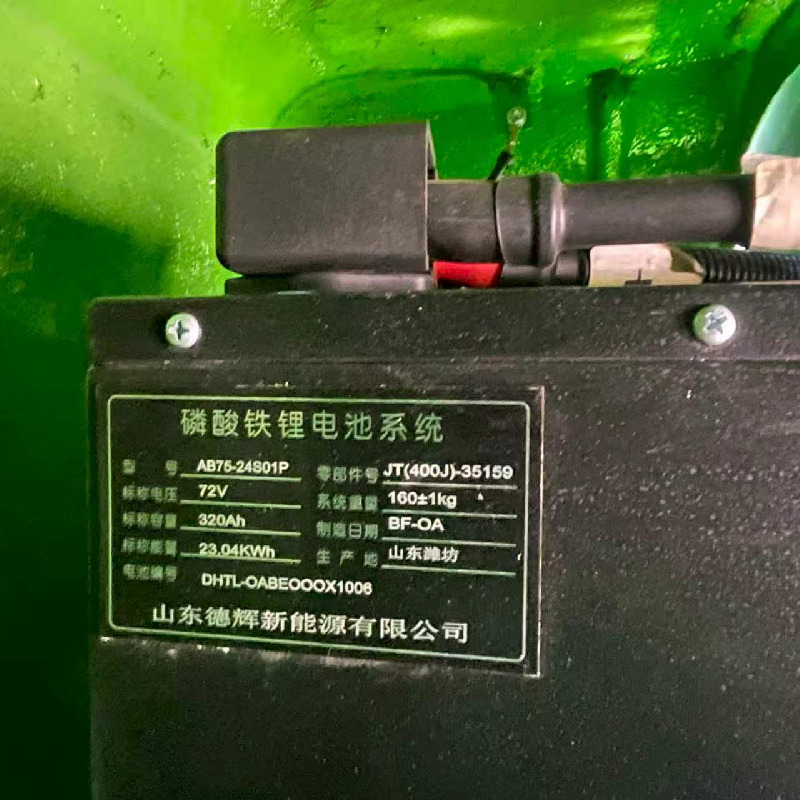

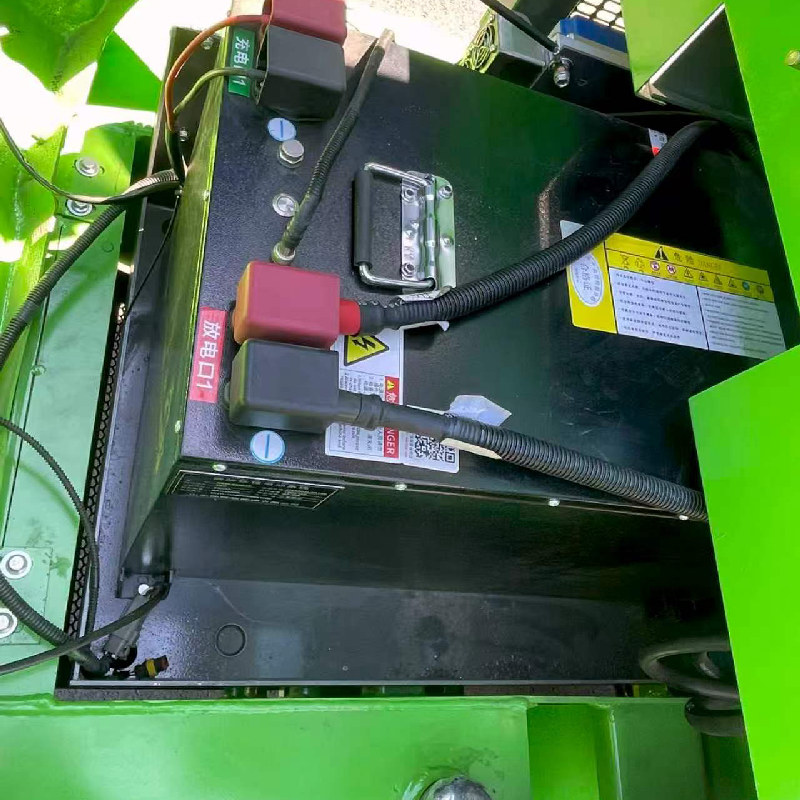

Battery Voltage / Capacity	72V / 100Ah – 150Ah Lithium Battery
Operating Weight	1,000 kg
Bucket Capacity	0.02 m³
Bucket Width	380 mm

2. Main Dimensions

Specification Item	Value
Overall Transport Length	2,770 mm
Overall Transport Width	930 mm
Overall Transport Height	1,490 mm
Track Length	1,230 mm
Track Width	180 mm
Min. Ground Clearance	132 mm

3. Working Range & Performance

Specification Item	Value
Max. Digging Depth	1,650 mm
Max. Digging Height	2,610 mm
Max. Dumping Height	1,850 mm
Max. Digging Radius	2,890 mm
Min. Rotation Radius	1,330 mm
Max. Travel Speed	1.5 km/h
Continuous Working Time	4 – 6 hours
Charging Time	4 – 6 hours

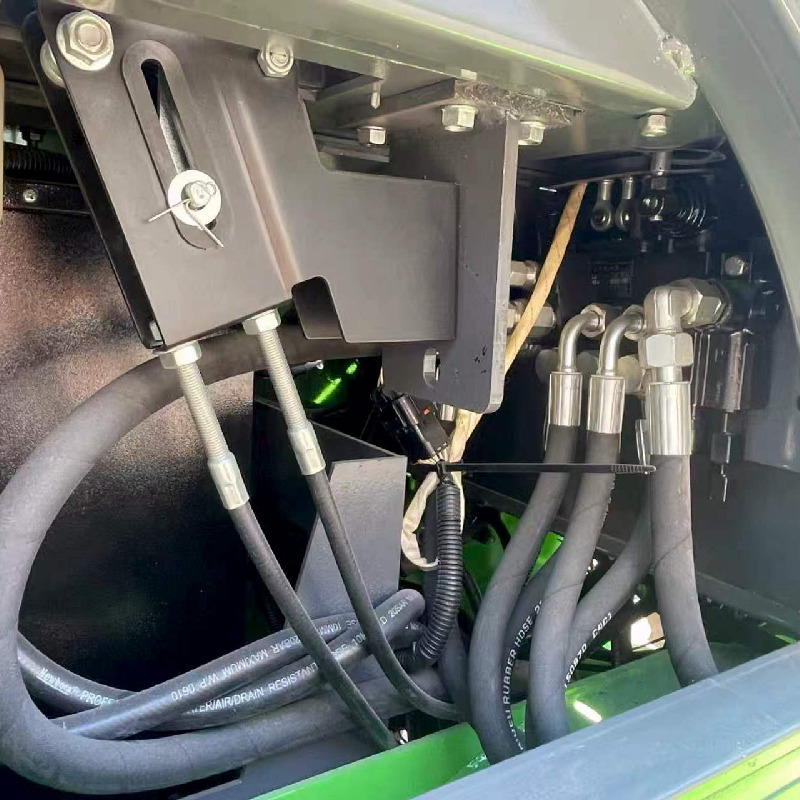

4. Hydraulic & Swing System

Specification Item	Value / Description
System Working Pressure	16 MPa
Hydraulic Tank Capacity	16 L
Swing Speed	11 rpm
Gradeability	30% (16.7°)
Track Type	Rubber Track
