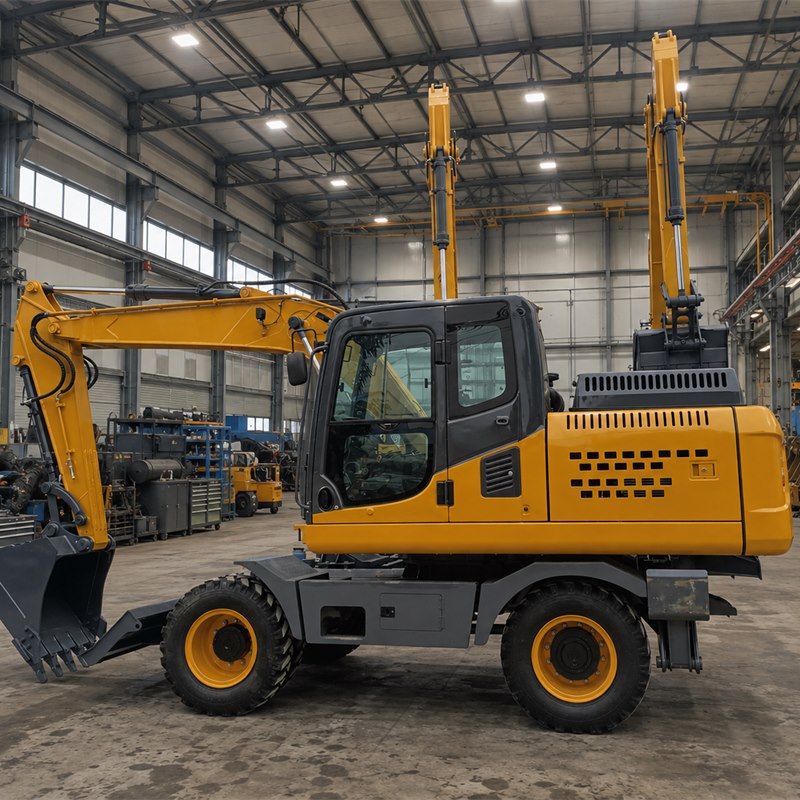

W17 WHEEL EXCAVATOR

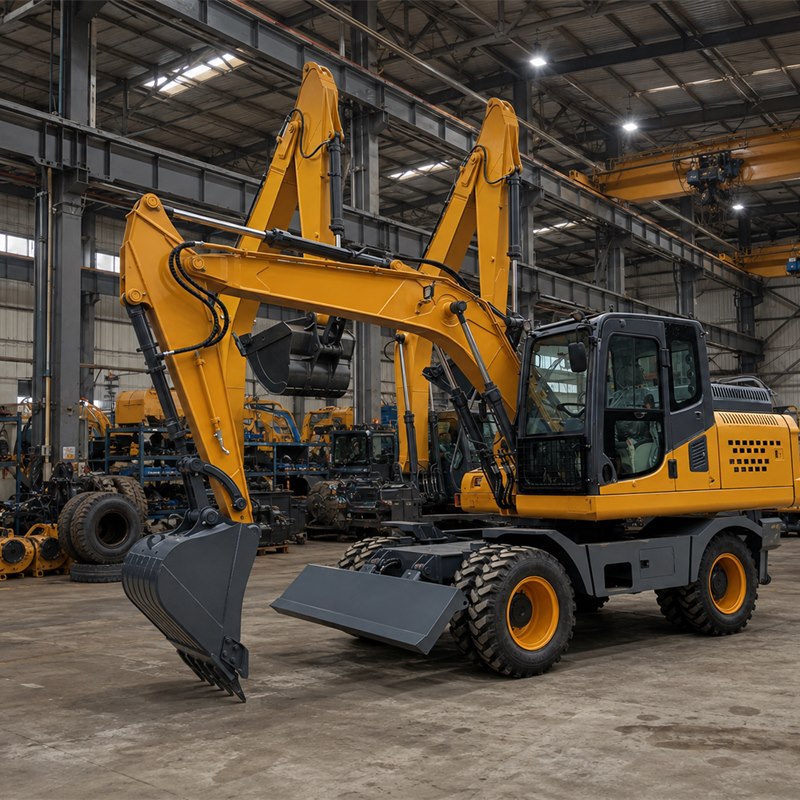

W17 WHEEL EXCAVATOR - Image 2

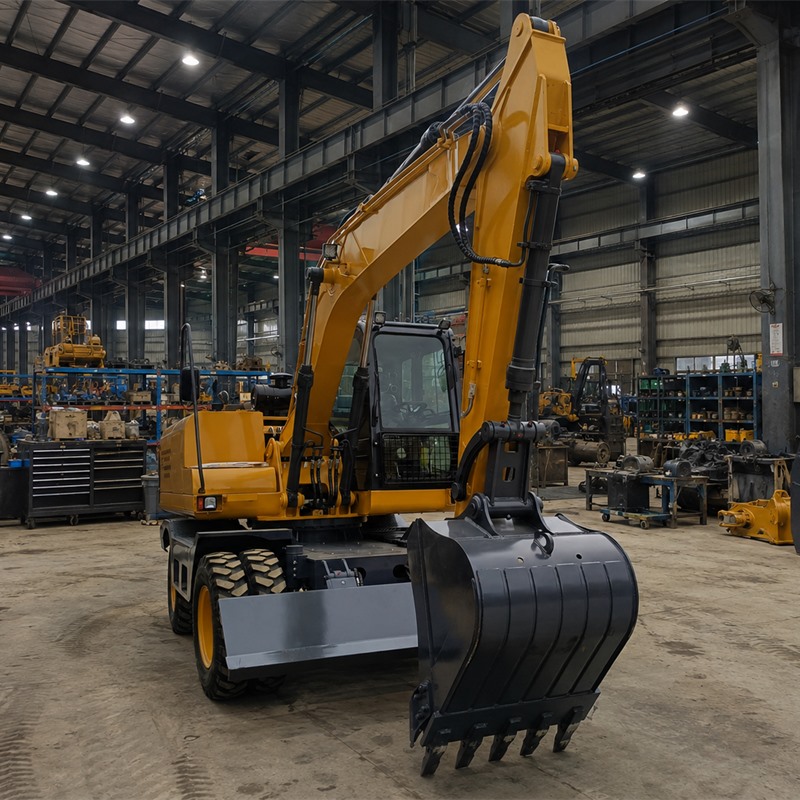

W17 WHEEL EXCAVATOR - Image 3

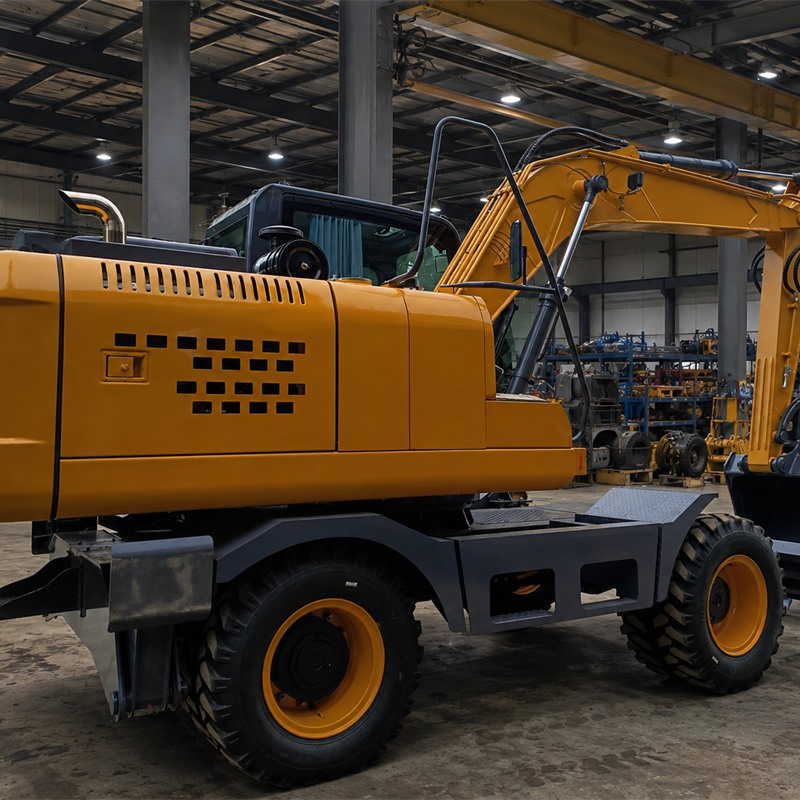

W17 WHEEL EXCAVATOR - Image 4

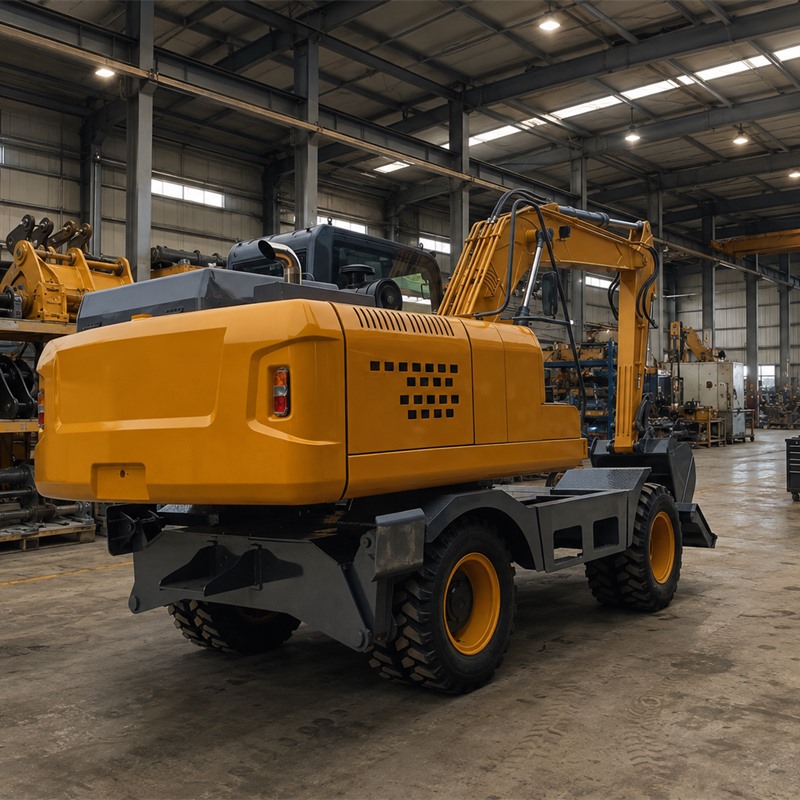

W17 WHEEL EXCAVATOR - Image 5

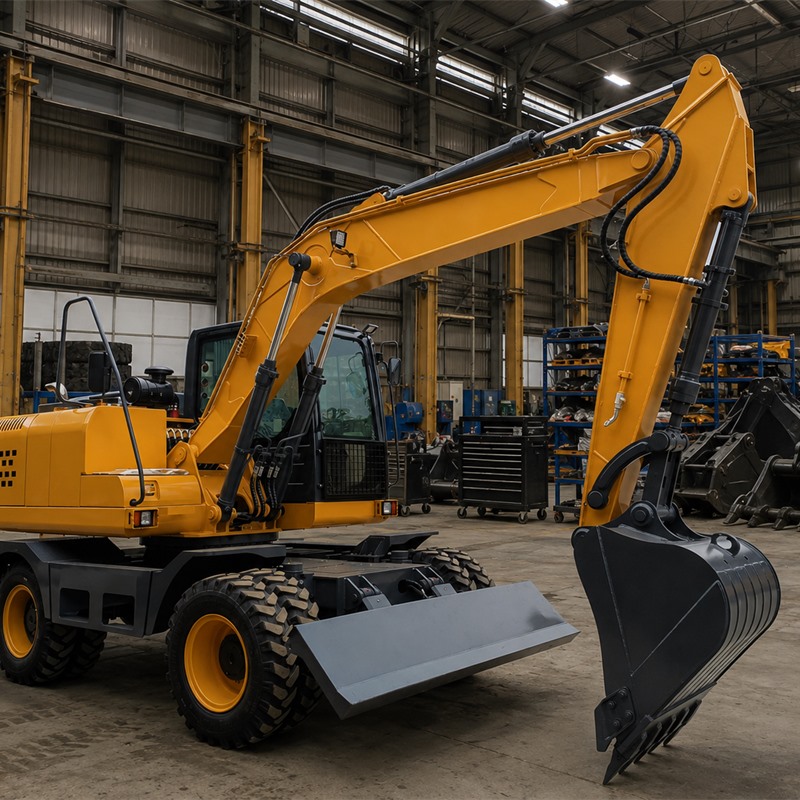

W17 WHEEL EXCAVATOR - Image 6

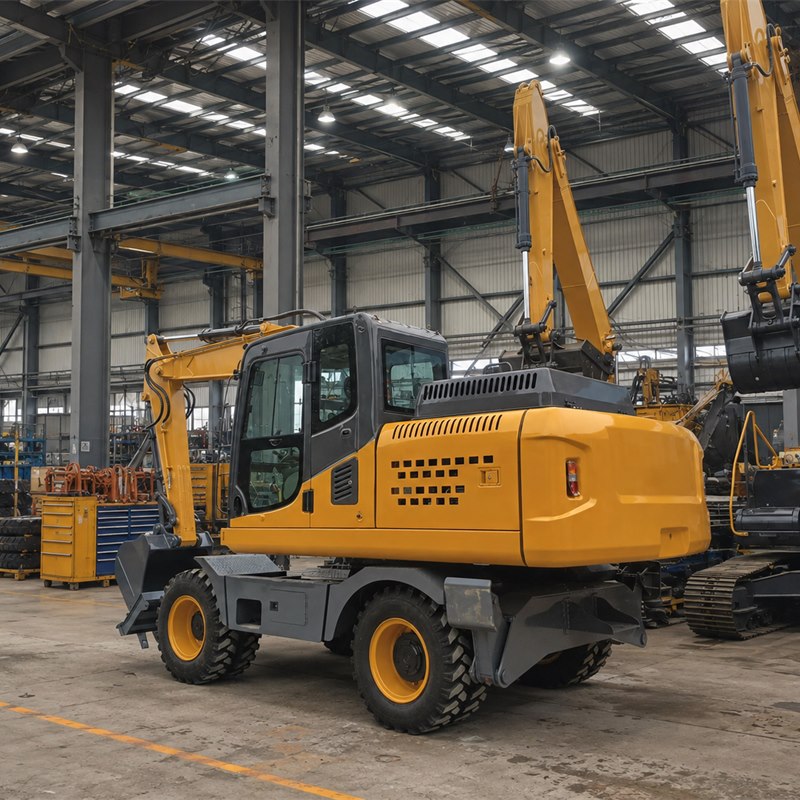

W17 WHEEL EXCAVATOR - Image 7

W17 WHEEL EXCAVATOR

Key Specifications Overview

Operating Weight: 17,000 kg

Bucket Capacity: 0.80 m³

Max. Digging Depth: 5,525 mm

PRODUCT HIGHLIGHTS

01 IMPORTED HYDRAULICS
Imported hydraulic system, 4WD and four-wheel hydraulic brakes for safe, stable operation.

02 LOAD-SENSING SYSTEM
Fast hydraulic response and shorter operating cycle times.

03 PREMIUM COMPONENTS
Doosan hydraulic cylinders and a Rexroth travel motor provide powerful, stable and durable performance.

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS

Specification	Value	Specification	Value
Engine Model	6BTAA5.9	Engine Power	133 kW / 2200 rpm
Operating Weight	17000 kg	Bucket Capacity	0.80 m³

DIMENSIONS

Specification	Value	Specification	Value
Shipping Length	7840 mm	Boom Length	4800 mm
Shipping Height	3240 mm	Arm Length	3180 mm
Overall Width	2600 mm	Blade Height	590 mm
Turntable Width	2600 mm	Blade Width	2500 mm
Wheelbase	2800 mm	Blade Lifting Height	450 mm
Wheel Tread	1960 mm	Blade Support Height	110 mm
Rear Swing Radius	2450 mm	Tire Size	10.00-20
Counterweight Clearance	1380 mm	Min. Ground Clearance	360 mm
Hydraulic Oil Tank	180 L	Fuel Tank	220 L

WORKING RANGE & PERFORMANCE

Specification	Value	Specification	Value
Max. Digging Radius	8350 mm	Max. Digging Height	7980 mm
Max. Digging Depth	5525 mm	Max. Dumping Height	5880 mm
Hydraulic Pressure	32 MPa	Hydraulic System Flow	2×160 L/min
Bucket Digging Force	92.5 kN	Arm Digging Force	60 kN
Swing Speed	13-14 r/min	Max. Travel Speed	28 km/h
Gradeability	>=60%
