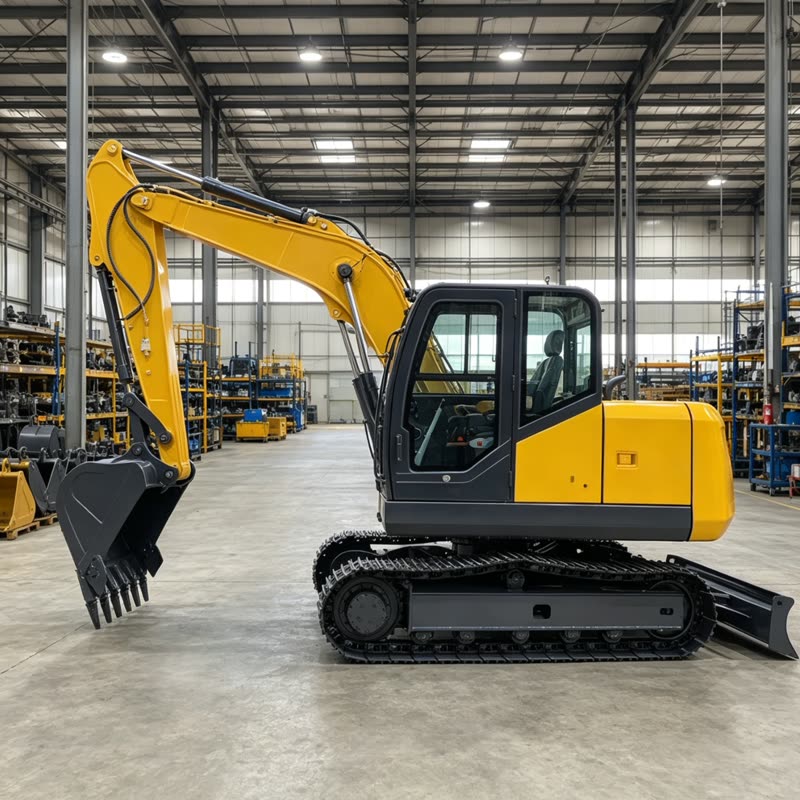

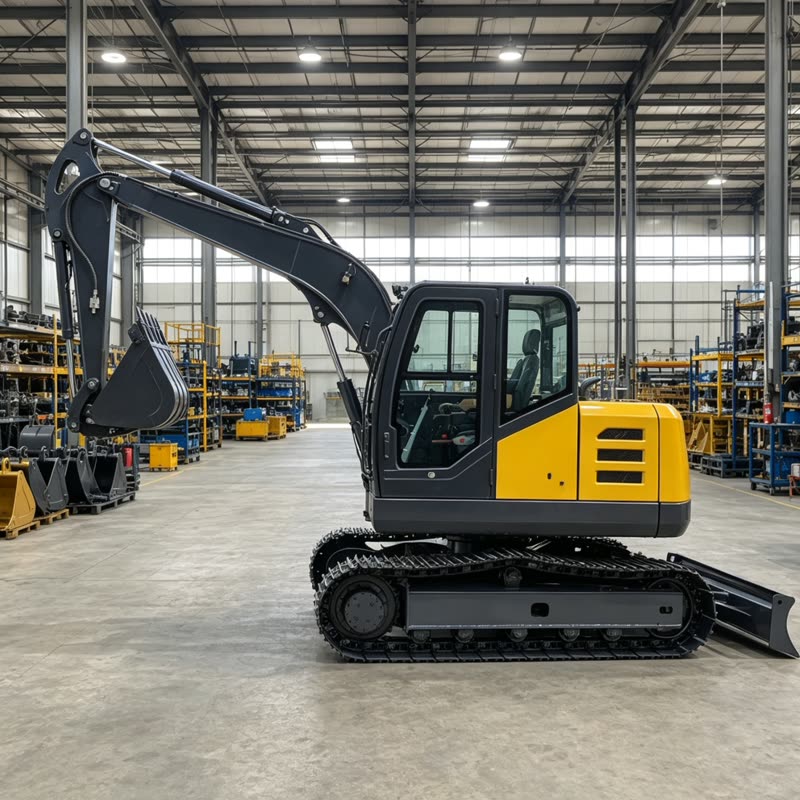

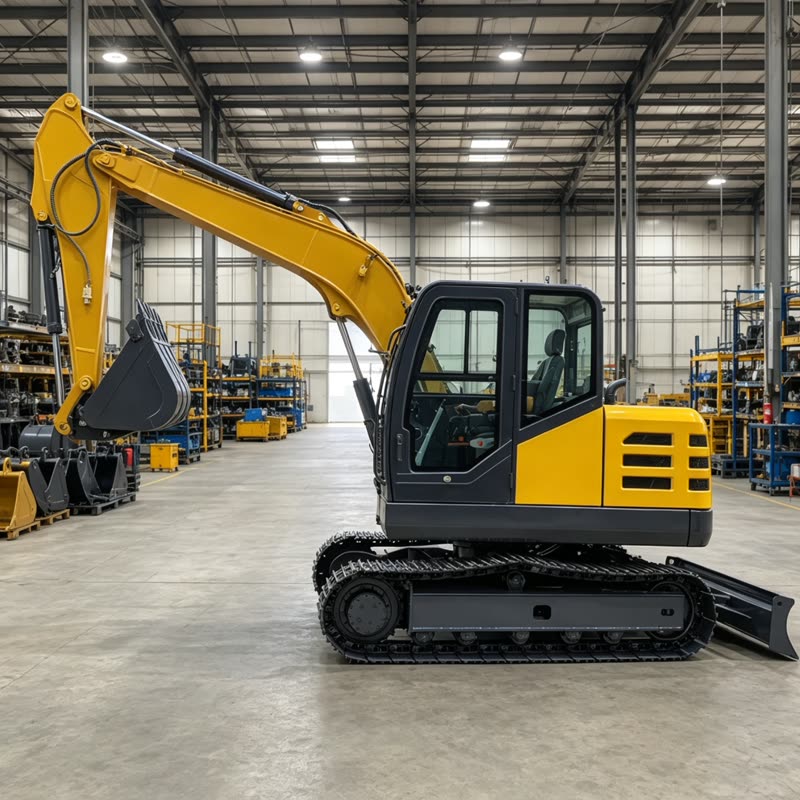

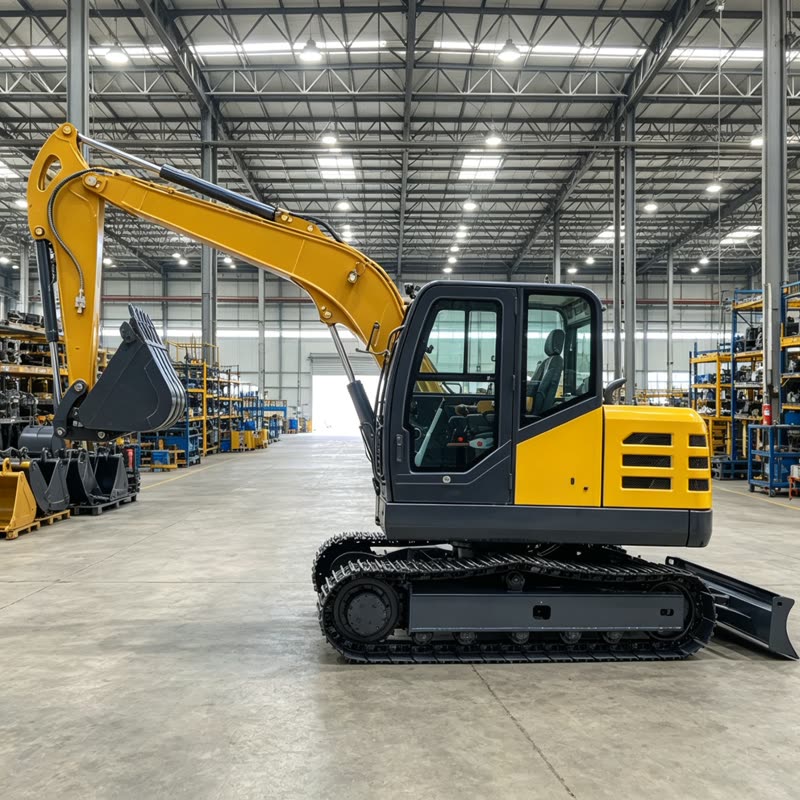

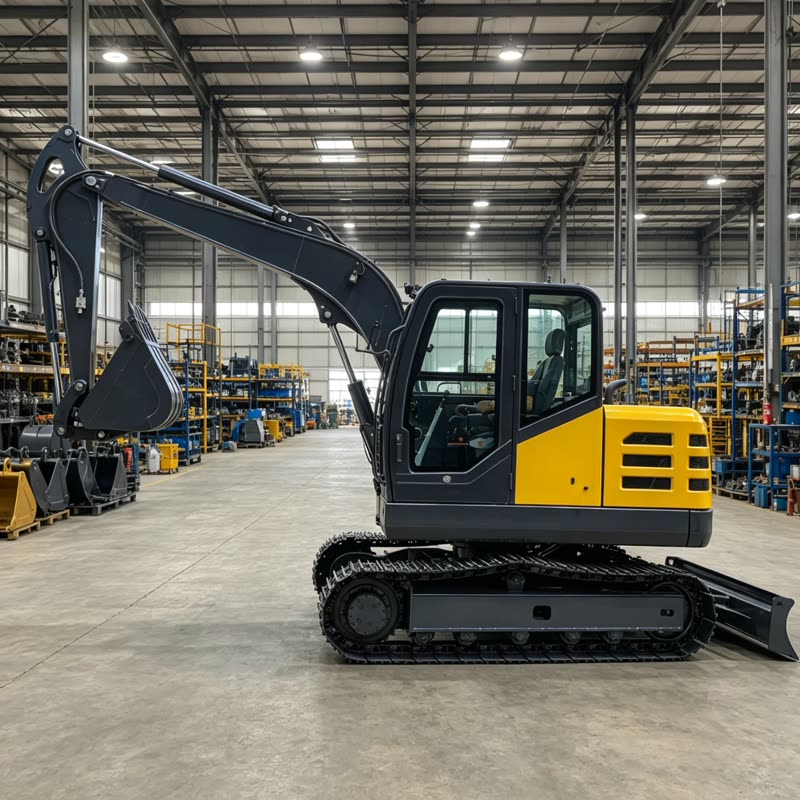

T360 CRAWLER EXCAVATOR
Key Specifications Overview
Operating Weight: 31,500 kg
Bucket Capacity: 1.6 m³
Max. Digging Depth: 7,100 mm
PRODUCT HIGHLIGHTS
01 IMPORTED HYDRAULIC SYSTEM
Original imported hydraulic system with fast compound action and stable slewing brake.
02 LOAD SENSITIVE SYSTEM
Load sensitive system ensures short cycle time and high operating efficiency.
03 REINFORCED BOOM & ARM
Standard anti-collision beam and reinforced boom/arm design greatly improve service life.
TECHNICAL SPECIFICATIONS
GENERAL SPECIFICATIONS
| Specification | Value | Specification | Value |
| Engine Model | CUMMINS HM8.3 | Engine Power | 194 kW / 2200 rpm |
| Operating Weight | 31500 kg | Bucket Capacity | 1.6 m³ |
DIMENSIONS
| Specification | Value | Specification | Value |
| Shipping Length | 10055 mm | Boom Length | 6245 mm |
| Shipping Height | 3697 mm | Arm Length | 3750 mm |
| Overall Width | 3200 mm | Track Length | 4940 mm |
| Turntable Width | 3280 mm | Gauge | 2600 mm |
| Track Width | 600 mm | Landing Gear Height | 3200 mm |
| Rear Swing Radius | 3195 mm | Min. Swing Width | 4055 mm |
| Counterweight Clearance | 1150 mm | Min. Ground Clearance | 475 mm |
| Hydraulic Oil Tank | 322 L | Fuel Tank | 460 L |
| Gradeability | >=70% |
WORKING RANGE & PERFORMANCE
| Specification | Value | Specification | Value |
| Max. Digging Radius | 10705 mm | Max. Digging Height | 10315 mm |
| Max. Digging Depth | 7100 mm | Max. Dumping Height | 7303 mm |
| Hydraulic Pressure | 32.34/34.3 MPa | Hydraulic System Flow | 2×280 L/min |
| Bucket Digging Force | 188/199.9 kN | Arm Digging Force | 145 kN |
| Swing Speed | 0-10.5 r/min | Travel Speed | 5.8-3.4 km/h |
