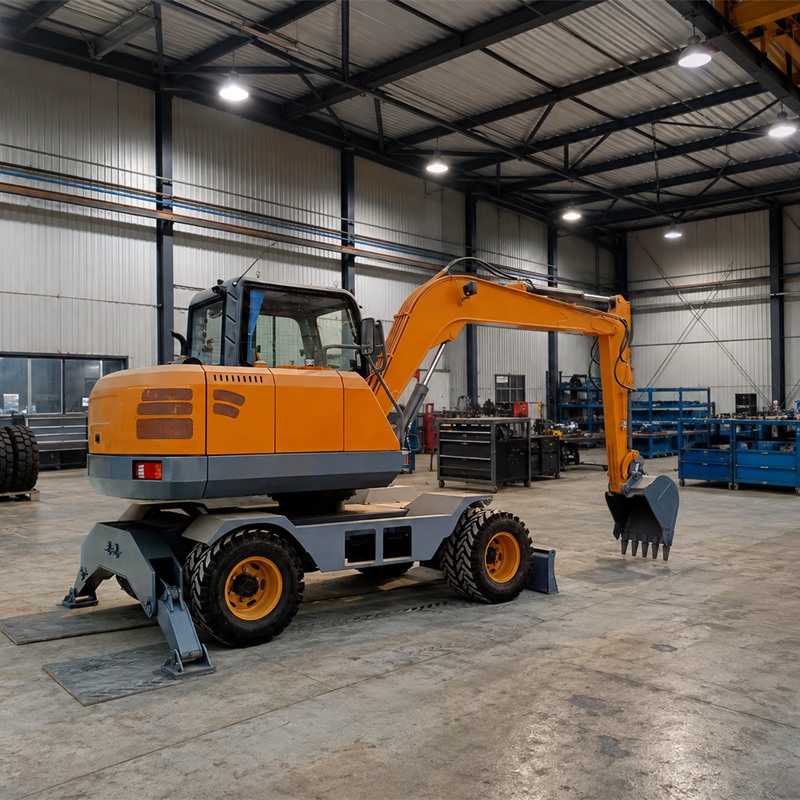

W85 WHEEL EXCAVATOR

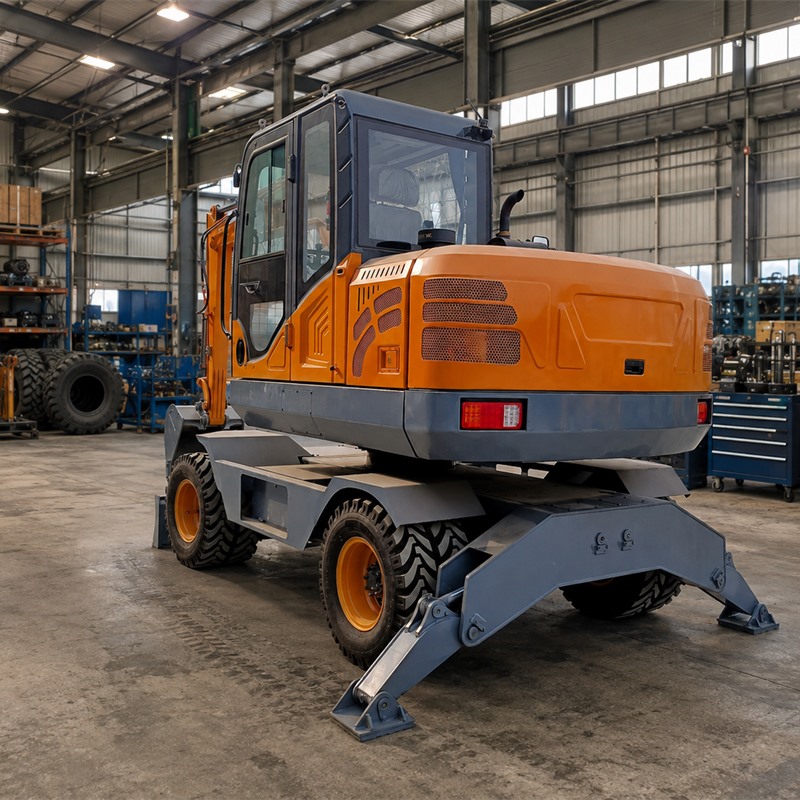

W85 WHEEL EXCAVATOR - Image 2

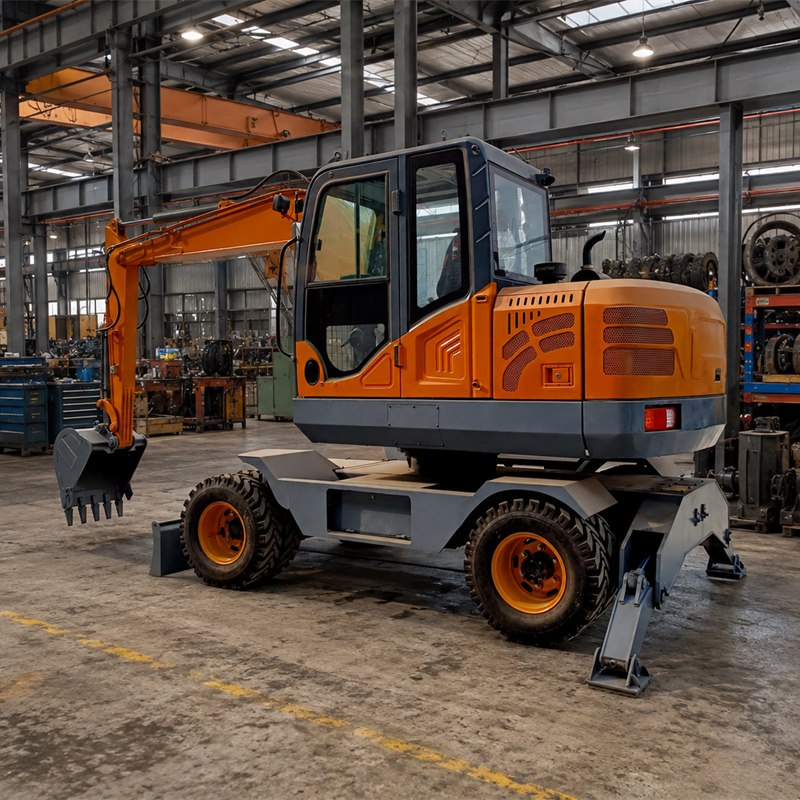

W85 WHEEL EXCAVATOR - Image 3

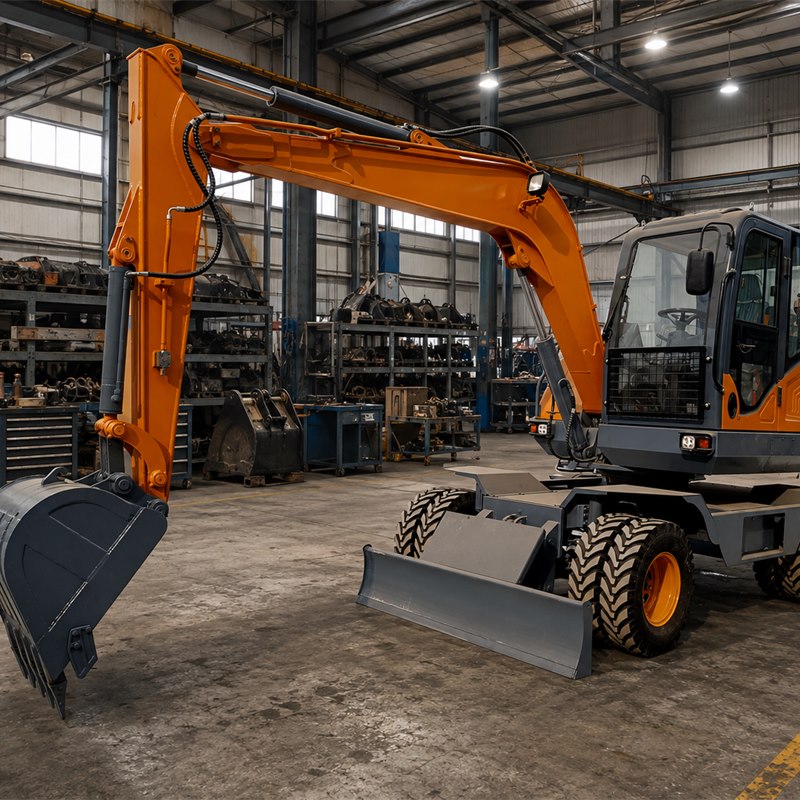

W85 WHEEL EXCAVATOR - Image 4

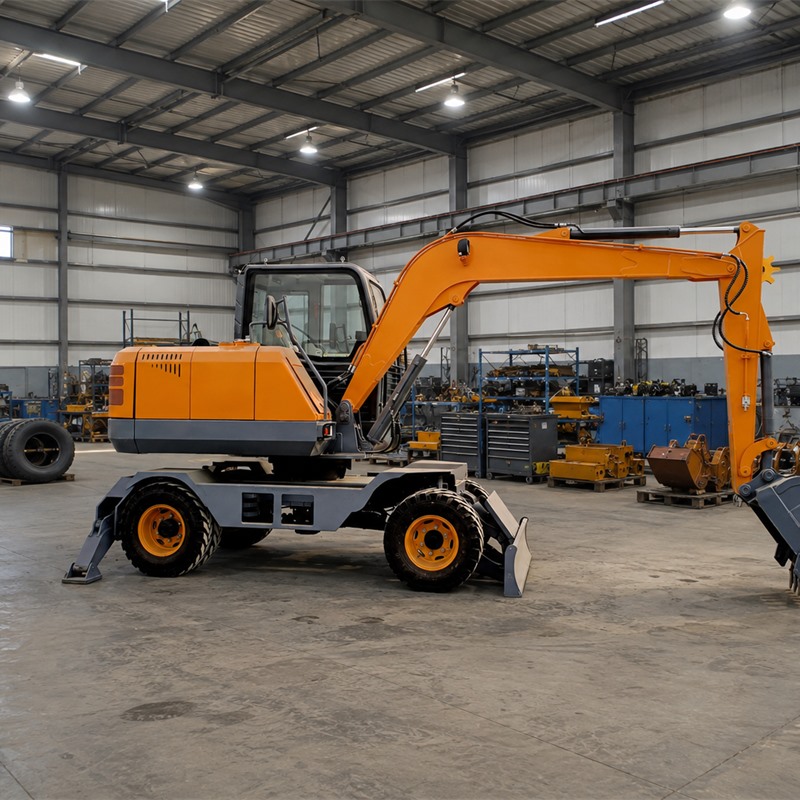

W85 WHEEL EXCAVATOR - Image 5

W85 WHEEL EXCAVATOR

Key Specifications Overview

Operating Weight: 8,050 kg

Bucket Capacity: 0.30 m³

Max. Digging Depth: 3,500 mm

PRODUCT HIGHLIGHTS

01 IMPORTED HYDRAULICS Imported hydraulic system, 4WD, continuously variable automatic transmission and hydraulic oil brakes.

02 LOAD-SENSING SYSTEM Fast hydraulic response and shorter operating cycle times.

03 COMPACT & FLEXIBLE Ideal for landscaping, residential greening and maintenance work in confined spaces.

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS

Specification	Value	Specification	Value
Engine Model	A498BZG	Engine Power	48 kW / 2300 rpm
Operating Weight	8050 kg	Bucket Capacity	0.30 m³

DIMENSIONS

Specification	Value	Specification	Value
Shipping Length	6300 mm	Boom Length	3500 mm
Shipping Height	2930 mm	Arm Length	1800 mm
Overall Width	2200 mm	Blade Height	500 mm
Turntable Width	1940 mm	Blade Width	2140 mm
Wheelbase	2360 mm	Blade Lifting Height	380 mm
Wheel Tread	1680 mm	Blade Support Height	80 mm
Rear Swing Radius	1860 mm	Tire Size	8.25-16
Counterweight Clearance	1000 mm	Min. Ground Clearance	240 mm
Hydraulic Oil Tank	130 L	Fuel Tank	120 L

WORKING RANGE & PERFORMANCE

Specification	Value	Specification	Value
Max. Digging Radius	6400 mm	Max. Digging Height	7100 mm
Max. Digging Depth	3500 mm	Max. Dumping Height	5300 mm
Hydraulic Pressure	26 MPa	Hydraulic System Flow	140 L/min
Bucket Digging Force	45 kN	Arm Digging Force	22 kN
Swing Speed	13-14 r/min	Max. Travel Speed	30 km/h
Gradeability	>=60%
