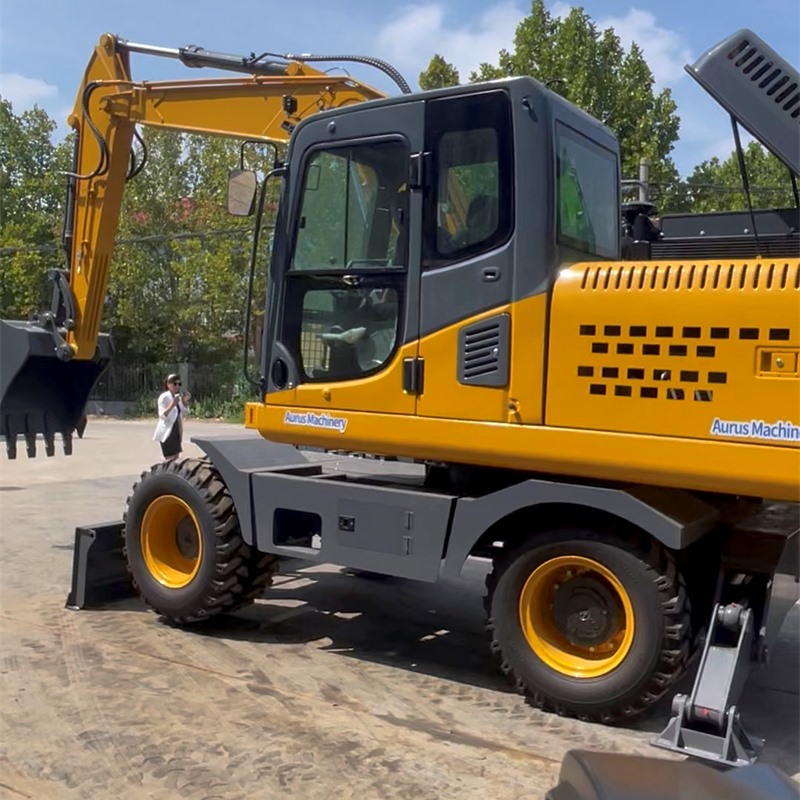

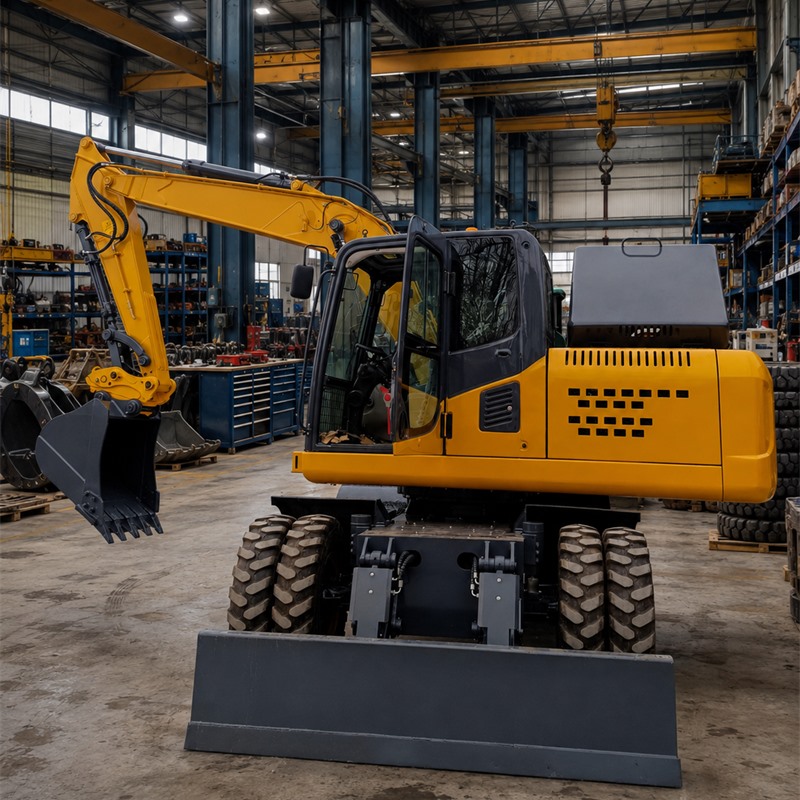

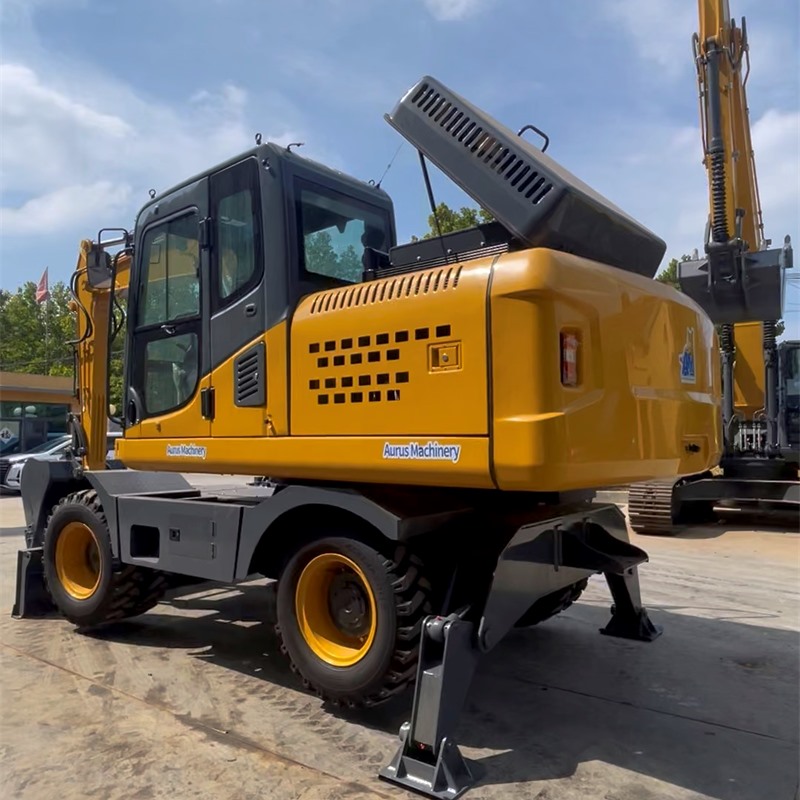

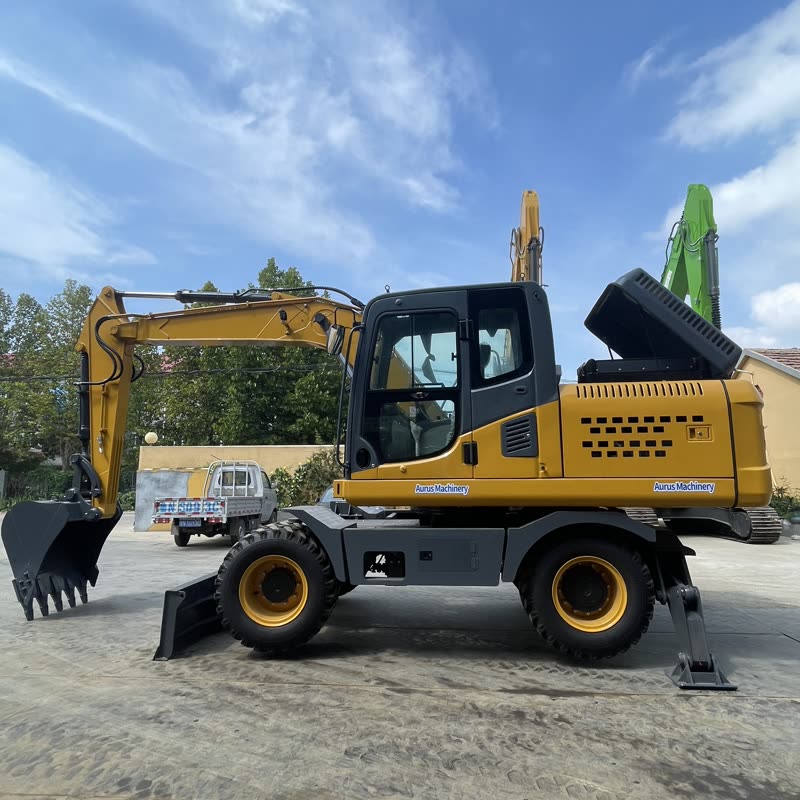

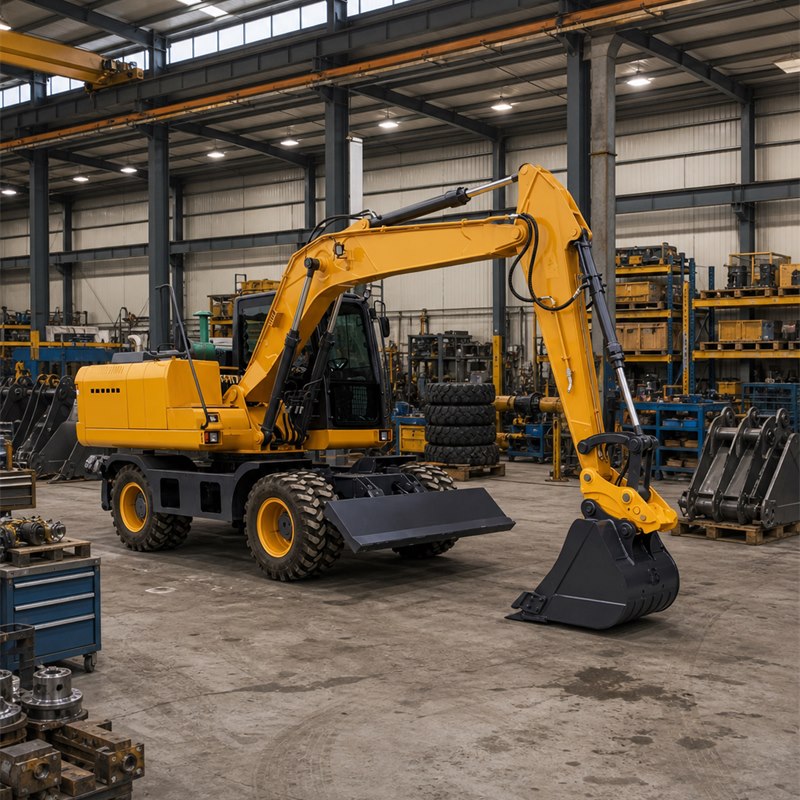

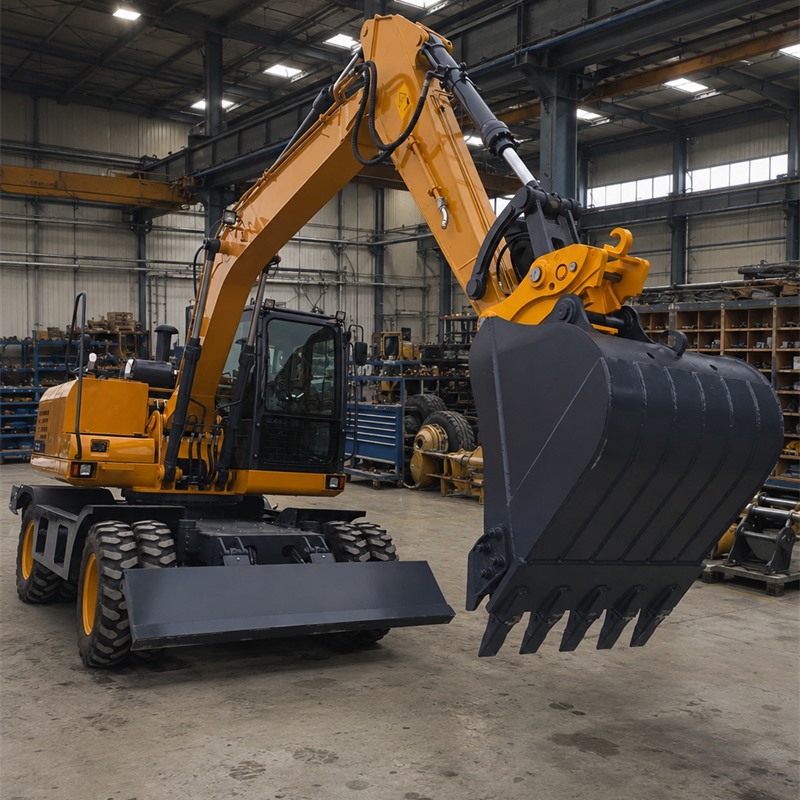

W140 WHEEL EXCAVATOR
Key Specifications Overview
Operating Weight: 14,000 kg

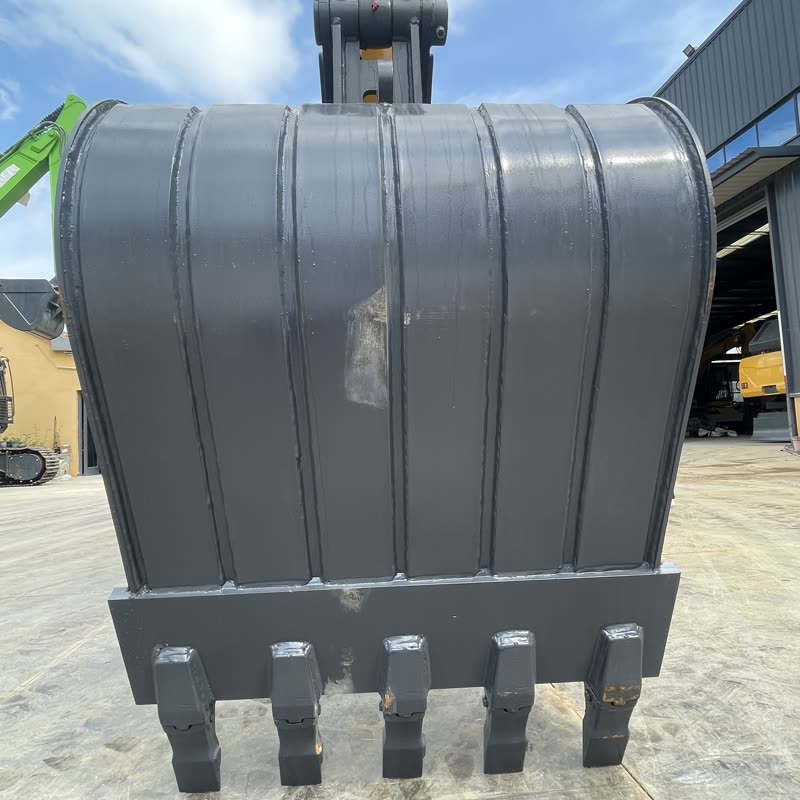

Bucket Capacity: 0.60 m³
Max. Digging Depth: 4,505 mm
PRODUCT HIGHLIGHTS
01 IMPORTED HYDRAULICS
Imported hydraulic system, 4WD, continuously variable automatic transmission and hydraulic oil brakes.
02 LOAD-SENSING SYSTEM
Fast hydraulic response and shorter operating cycle times.
03 MUNICIPAL & HIGHWAY SERVICE
Ideal for municipal emergency repairs, road and highway maintenance, with efficient jobsite transfers.
TECHNICAL SPECIFICATIONS
GENERAL SPECIFICATIONS
| Specification | Value | Specification | Value |
| Engine Model | 4BTAA3.9-C125 | Engine Power | 93 kW / 2200 rpm |
| Operating Weight | 14000 kg | Bucket Capacity | 0.60 m³ |
DIMENSIONS
| Specification | Value | Specification | Value |

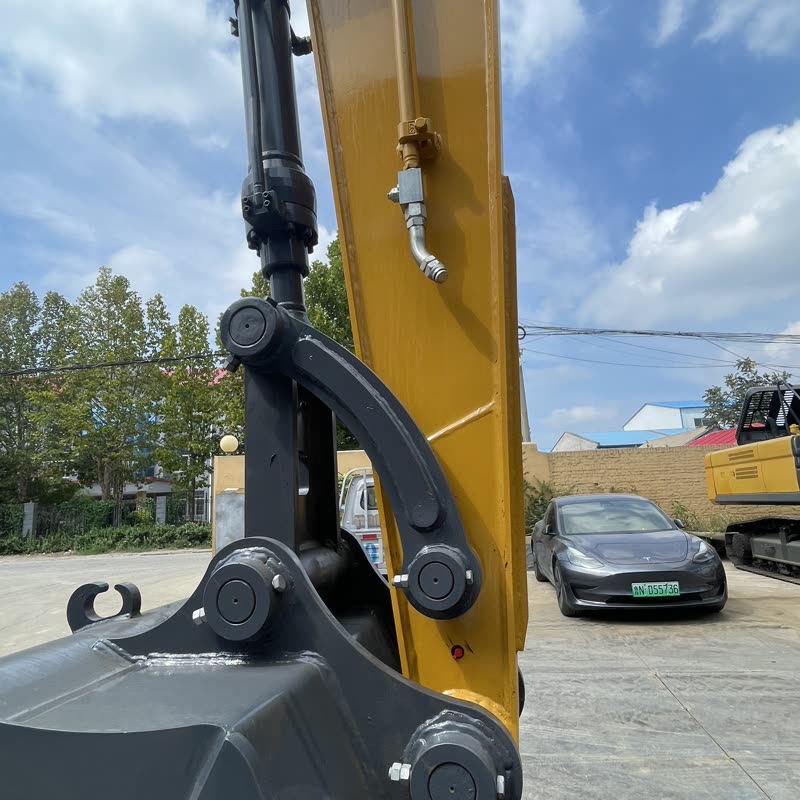

| Shipping Length | 7350 mm | Boom Length | 4300 mm |
| Shipping Height | 3140 mm | Arm Length | 2200 mm |

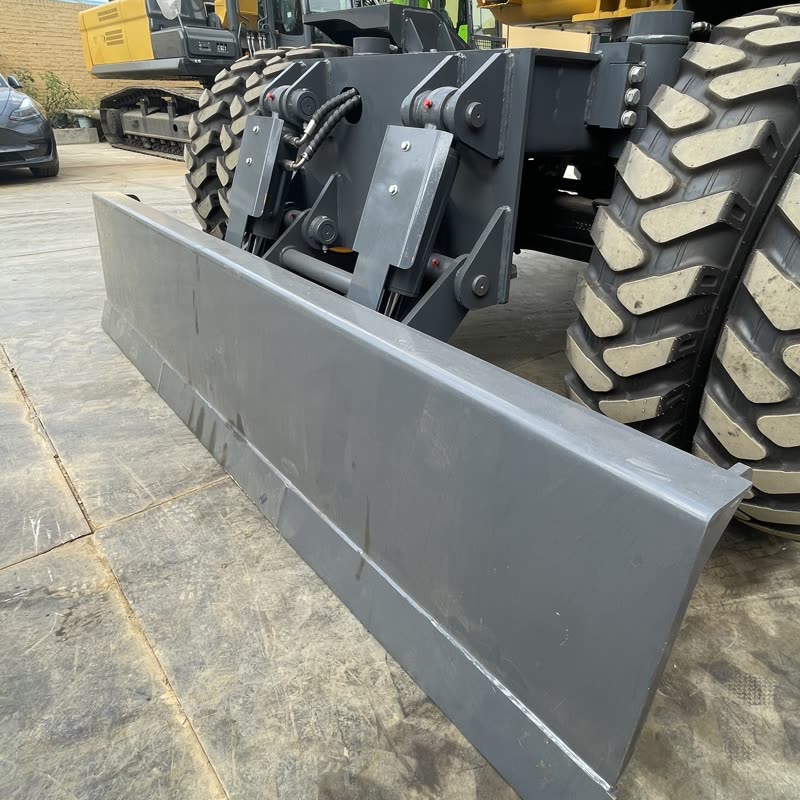

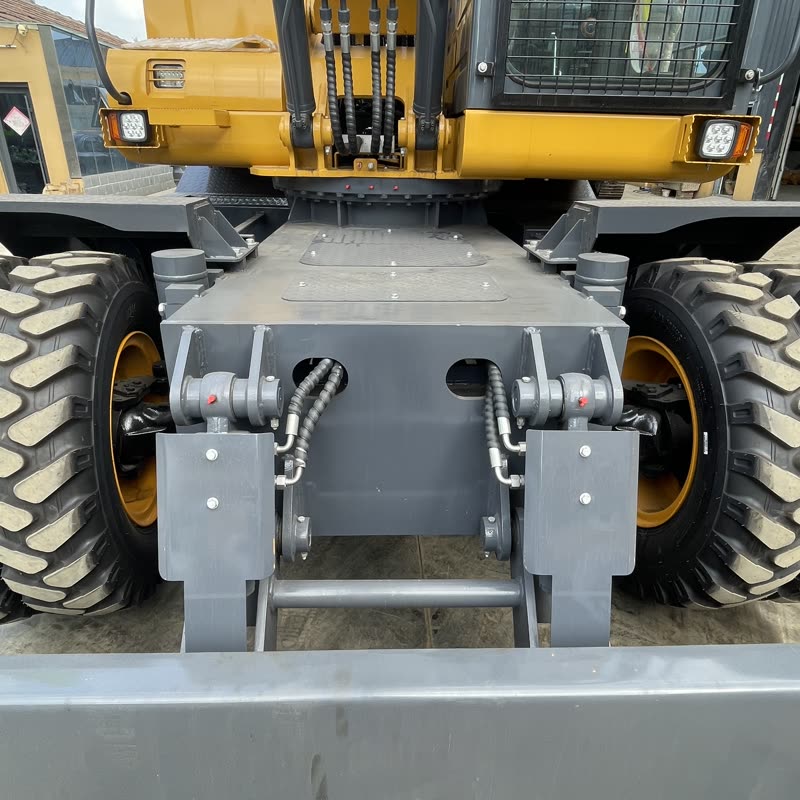

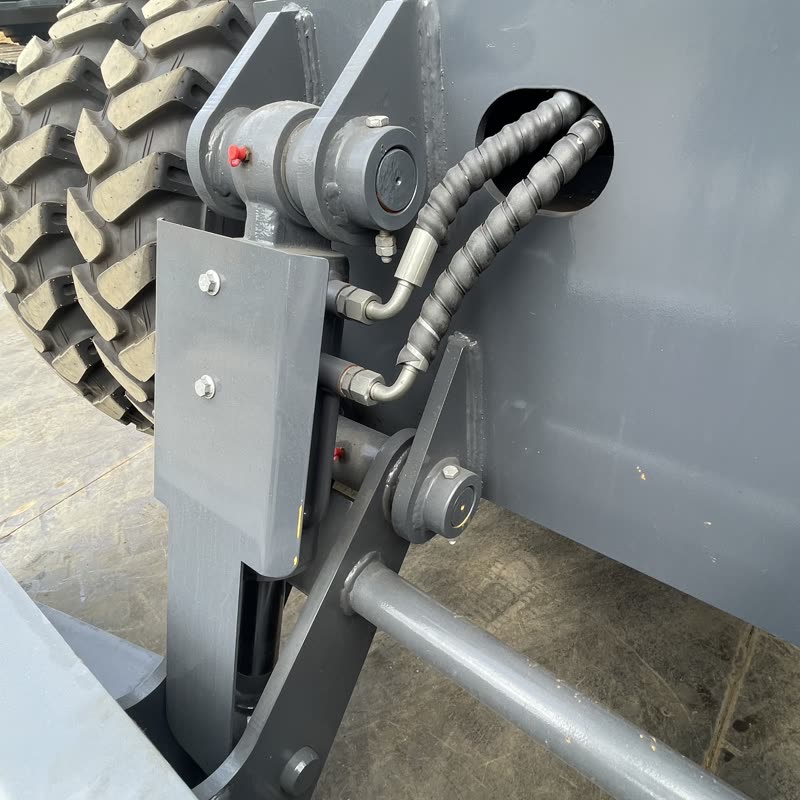

| Overall Width | 2550 mm | Blade Height | 440 mm |
| Turntable Width | 2430 mm | Blade Width | 2550 mm |
| Wheelbase | 2620 mm | Blade Lifting Height | 440 mm |
| Wheel Tread | 2000 mm | Blade Support Height | 100 mm |
| Rear Swing Radius | 2400 mm | Tire Size | 9.00-20 |
| Counterweight Clearance | 1210 mm | Min. Ground Clearance | 280 mm |
| Hydraulic Oil Tank | 180 L | Fuel Tank | 220 L |
WORKING RANGE & PERFORMANCE
| Specification | Value | Specification | Value |
| Max. Digging Radius | 7700 mm | Max. Digging Height | 7350 mm |
| Max. Digging Depth | 4505 mm | Max. Dumping Height | 5200 mm |
| Hydraulic Pressure | 31.5 MPa | Hydraulic System Flow | 2×126+53 L/min |
| Bucket Digging Force | 115 kN | Arm Digging Force | 98 kN |
| Swing Speed | 13-14 r/min | Max. Travel Speed | 22 km/h |
| Gradeability | >=60% |
