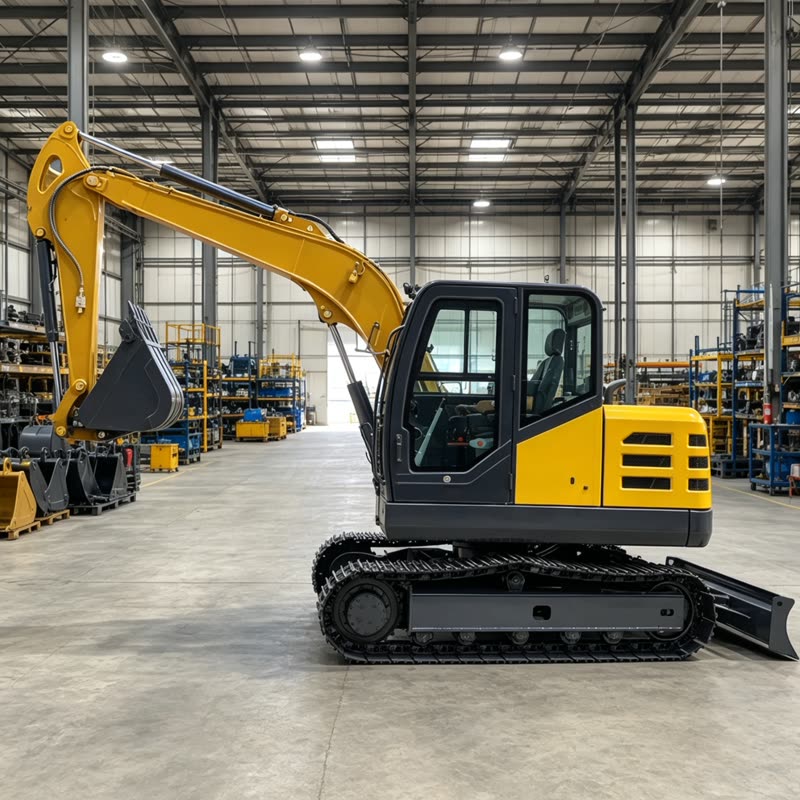

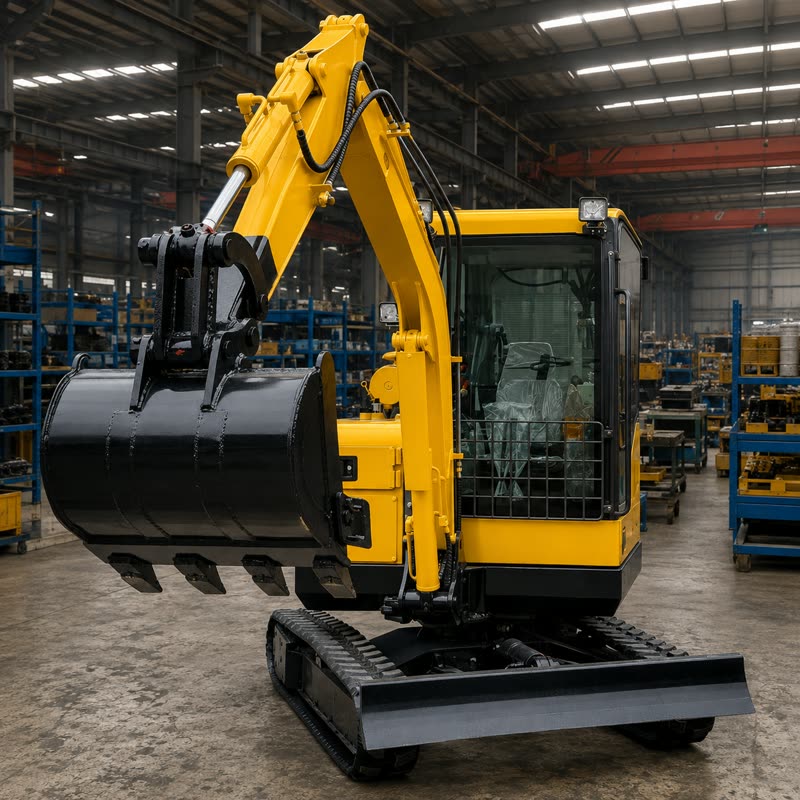

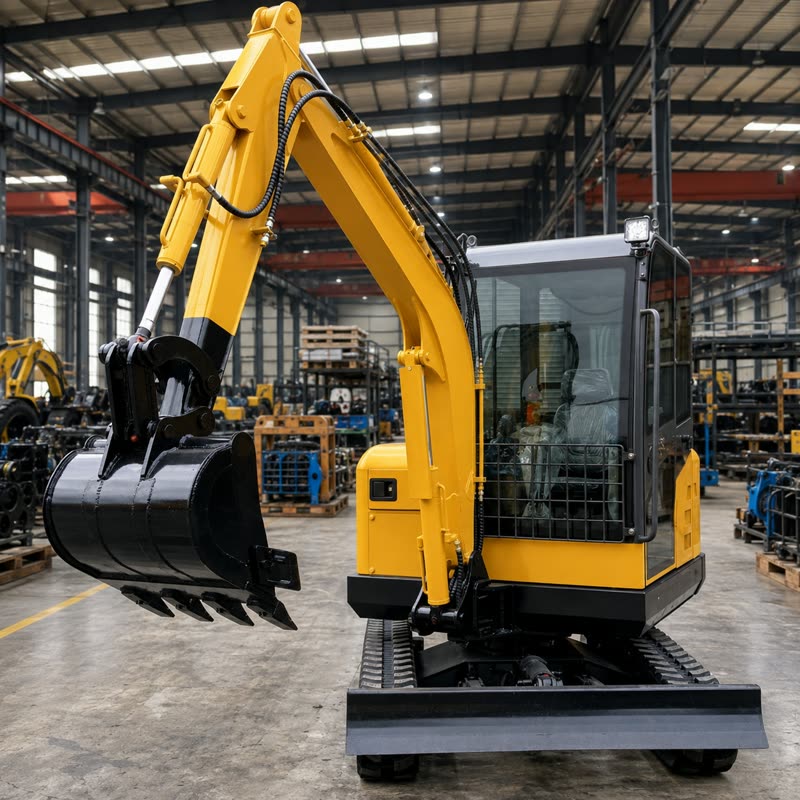

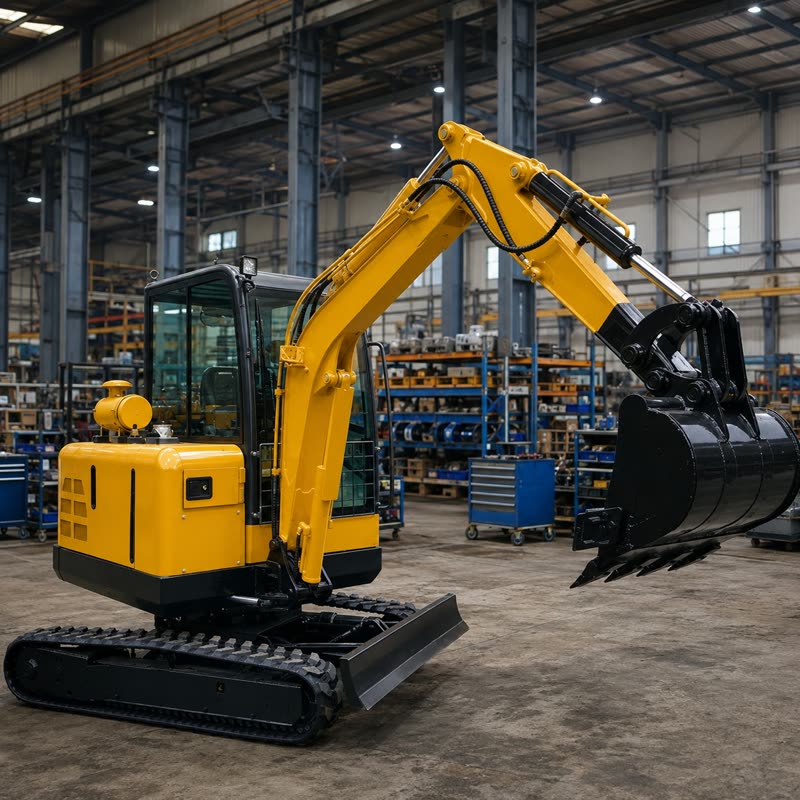

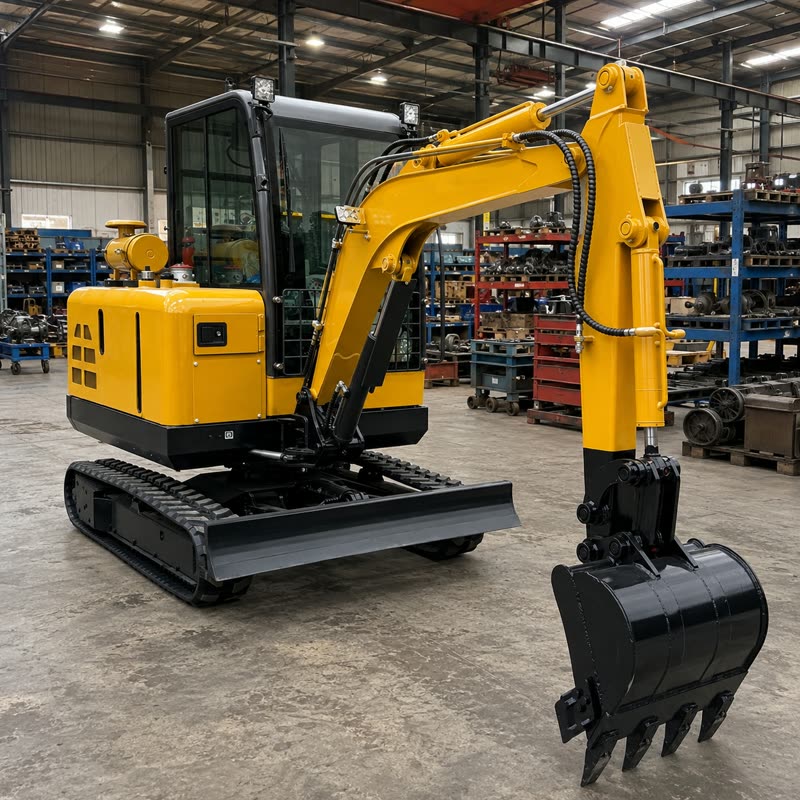

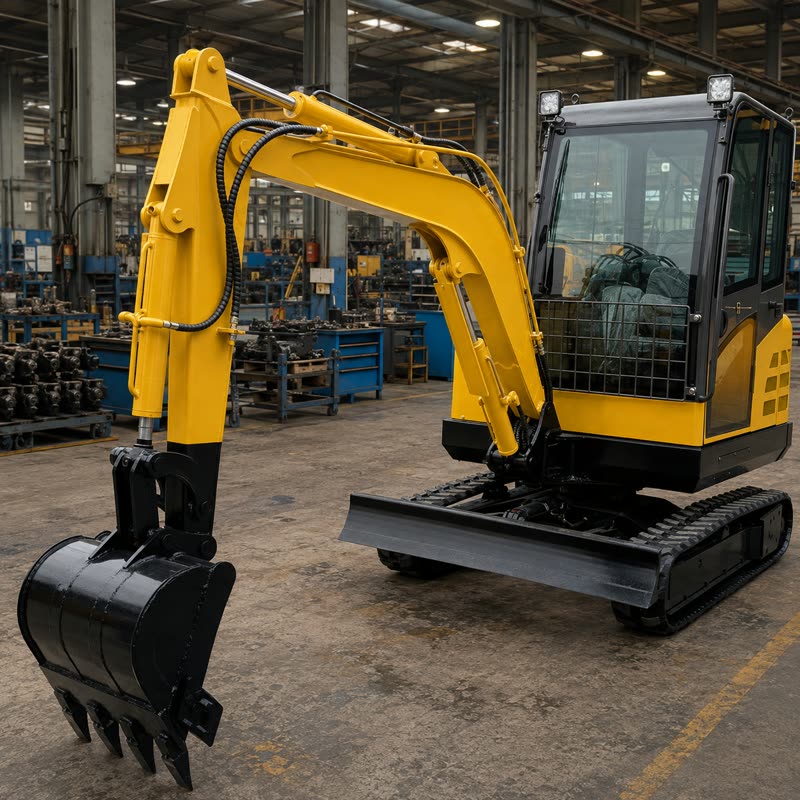

T40 CRAWLER EXCAVATOR
Key Specifications Overview
Operating Weight: 3,750 kg
Bucket Capacity: 0.12 m³
Max. Digging Depth: 3,165 mm
PRODUCT HIGHLIGHTS
01 YANMAR ENGINE
Compact, durable 3-cylinder diesel power with low fuel consumption, low noise and low vibration.
02 COMPACT DESIGN
1,740 mm overall width and 850 mm rear swing radius support efficient work in confined spaces.
03 RESPONSIVE HYDRAULICS
25.5 MPa system pressure and 99 L/min hydraulic flow deliver smooth, responsive operation.
TECHNICAL SPECIFICATIONS
GENERAL SPECIFICATIONS
| Specification | Value | Specification | Value |
| Engine Model | YANMAR 3TNV88F-ESSY | Engine Power | 18.2 kW / 2200 rpm |
| Operating Weight | 3750 kg | Bucket Capacity | 0.12 m³ |
DIMENSIONS
| Specification | Value | Specification | Value |
| Shipping Length | 4800 mm | Boom Length | 2487 mm |
| Shipping Height | 2480 mm | Arm Length | 1370 mm |
| Overall Width | 1740 mm | Track Length | 2120 mm |
| Turntable Width | 1700 mm | Gauge | 1440 mm |
| Track Width | 300 mm | Min. Swing Radius | 2125 mm |
| Rear Swing Radius | 850 mm | Max. Height at Min. Swing | 3785 mm |
| Counterweight Clearance | 565 mm | Swing Center to Rear | 850 mm |
| Hydraulic Oil Tank | 50 L | Counterweight Height | 982 mm |
| Fuel Tank | 41 L | Min. Ground Clearance | 320 mm |
WORKING RANGE & PERFORMANCE
| Specification | Value | Specification | Value |
| Max. Digging Radius | 5135 mm | Max. Digging Height | 4920 mm |
| Max. Digging Depth | 3165 mm | Max. Dumping Height | 3490 mm |
| Hydraulic Pressure | 25.5 MPa | Hydraulic Flow | 99 L/min |
| Swing Speed | 9.5 r/min | Travel Speed | 4.5/2.7 km/h |
| Gradeability | >=70% |
