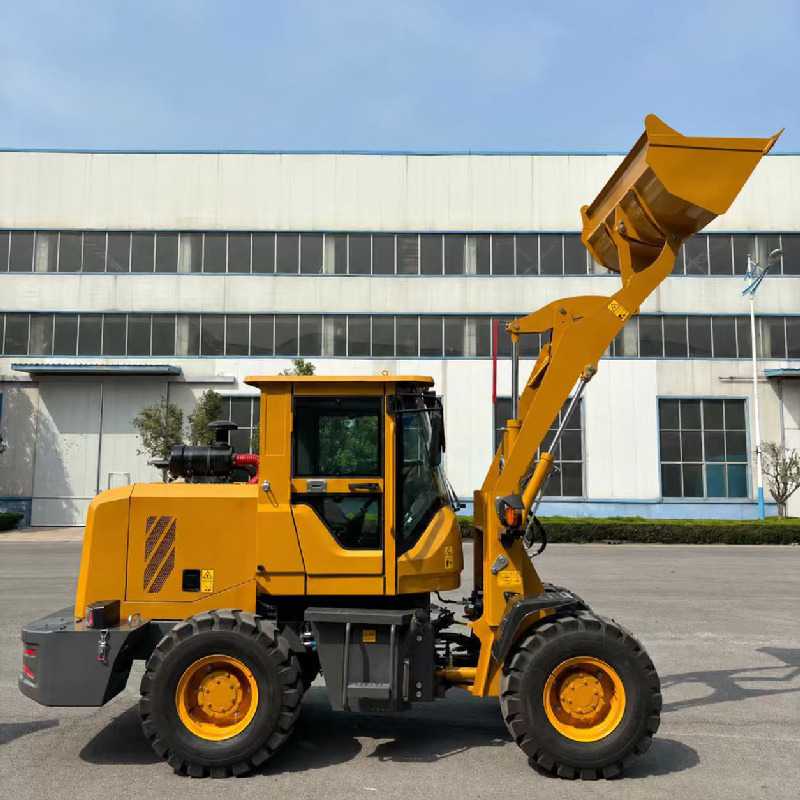

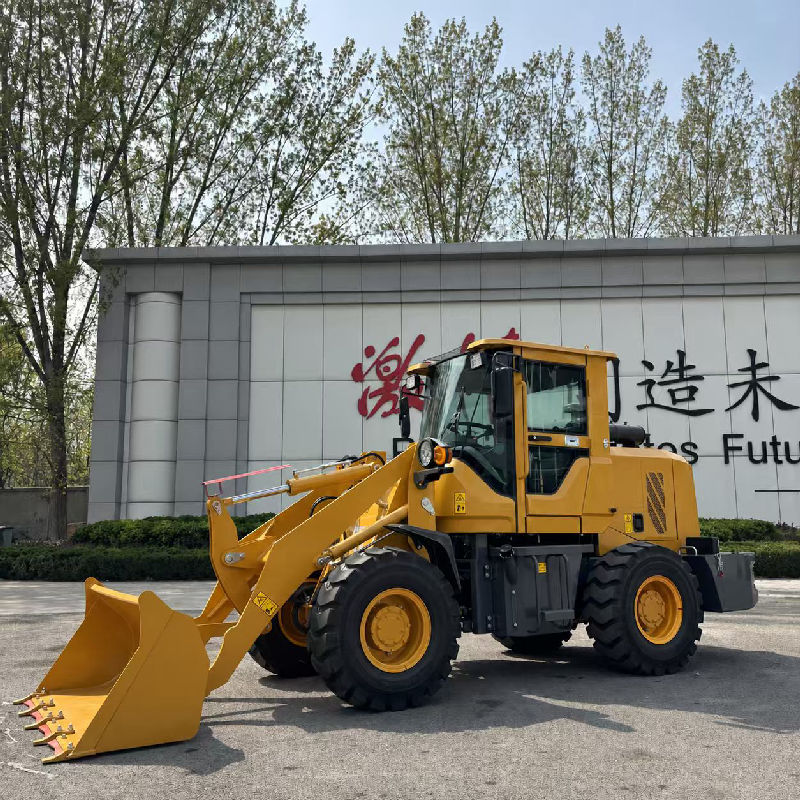

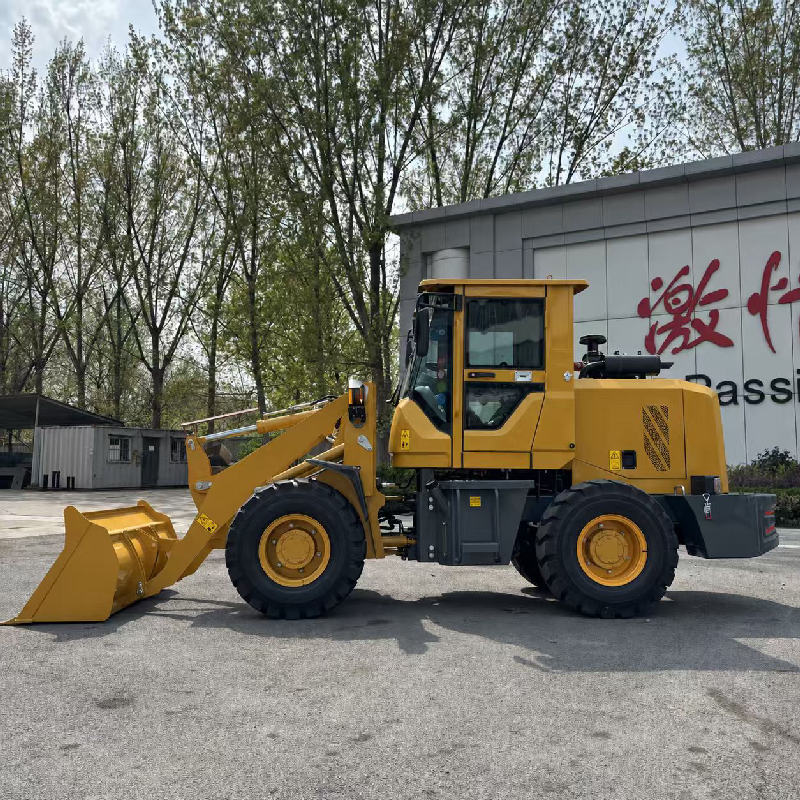

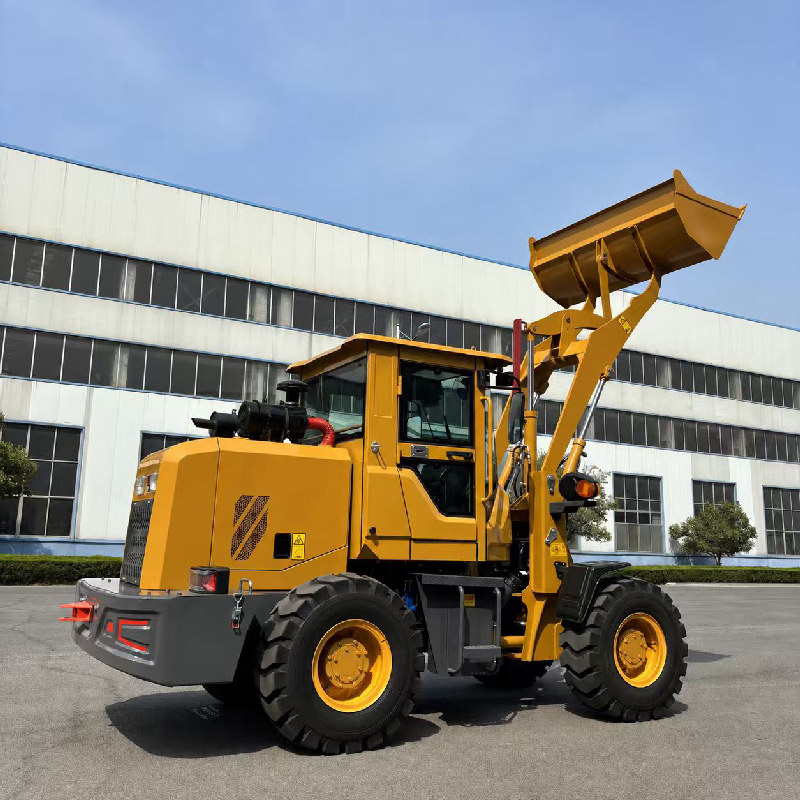

AM906 WHEEL LOADER

AM906 WHEEL LOADER - Image 2

AM906 WHEEL LOADER - Image 3

AM906 WHEEL LOADER - Image 4

AM906 WHEEL LOADER - Image 5

AM906 WHEEL LOADER

KEY SPECIFICATIONS

600kg Rated Load

0.3m³ Bucket Capacity

1700kg Operating Weight

PRODUCT HIGHLIGHTS

01 COMPACT & MANEUVERABLE Compact chassis design allows easy navigation through narrow access points and tight working environments.

02 EFFICIENT POWER SYSTEM Reliable small-displacement engine delivers optimal power output with exceptional fuel efficiency.

03 FULL HYDRAULIC STEERING Full hydraulic steering system ensures effortless, light, and responsive control for operators.

TECHNICAL SPECIFICATIONS – AM906 WHEEL LOADER

1. General Specifications

Specification Item	Value / Standard
Engine Model	Changchai 390 / Kubota
Engine Power	25 kW / 2400 rpm
Rated Load	600 kg
Bucket Capacity	0.3 m³
Operating Weight	1,700 kg
Number of Cylinders	3

2. Dimensions

Specification Item	Value
Vehicle Length	3,800 mm
Vehicle Width	1,250 mm
Vehicle Height	2,300 mm
Wheelbase	1,350 mm
Min. Ground Clearance	200 mm
Min. Turning Radius	3,500 mm

3. Working Performance

Specification Item	Value
Max. Dumping Height	2,100 mm
Dumping Reach	650 mm
Dumping Angle	35°
Gradeability	15°
Max. Travel Speed	18 km/h
Total Cycle Time	≤ 8.0 s

4. Transmission & Steering

Specification Item	Value / Description
Transmission Type	Automatic / Mechanical Drive
Shift Gears	2 Forward / 2 Reverse
Braking System	Hydraulic Disc Brake

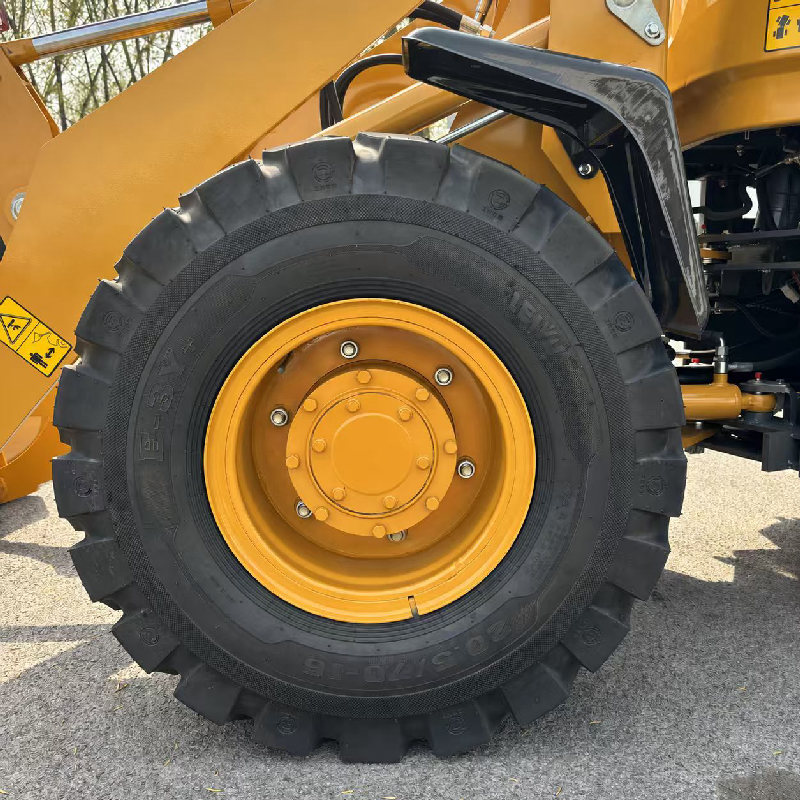

Tire Size	29×12.5-15 / 7.50-16
Steering Type	Full Hydraulic Steering

5. Capacities

Tank / System	Capacity
Fuel Tank	30 L
Hydraulic Oil Tank	30 L
Engine Oil	4.5 L
