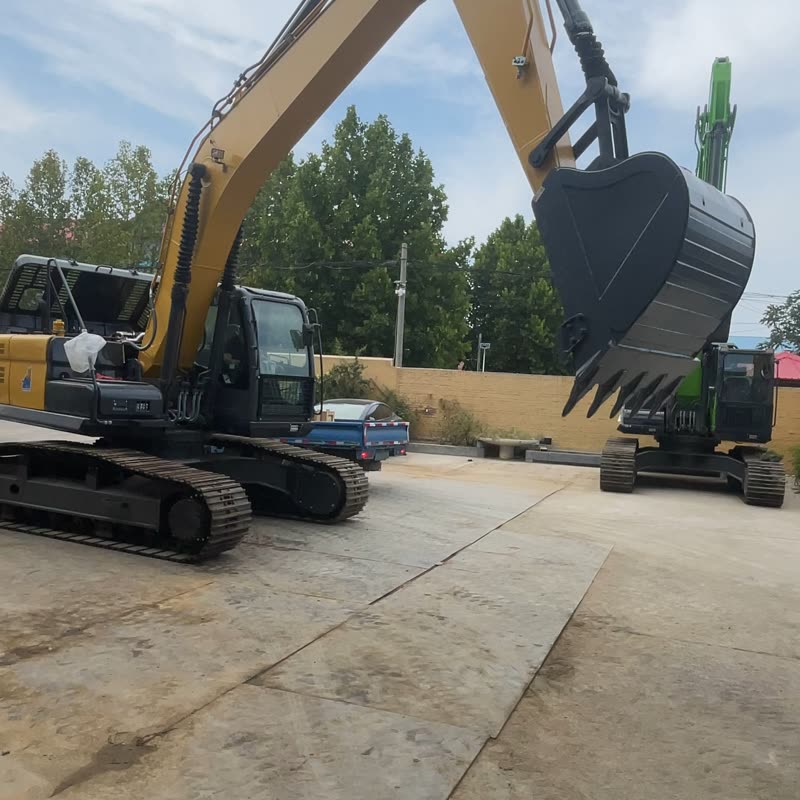

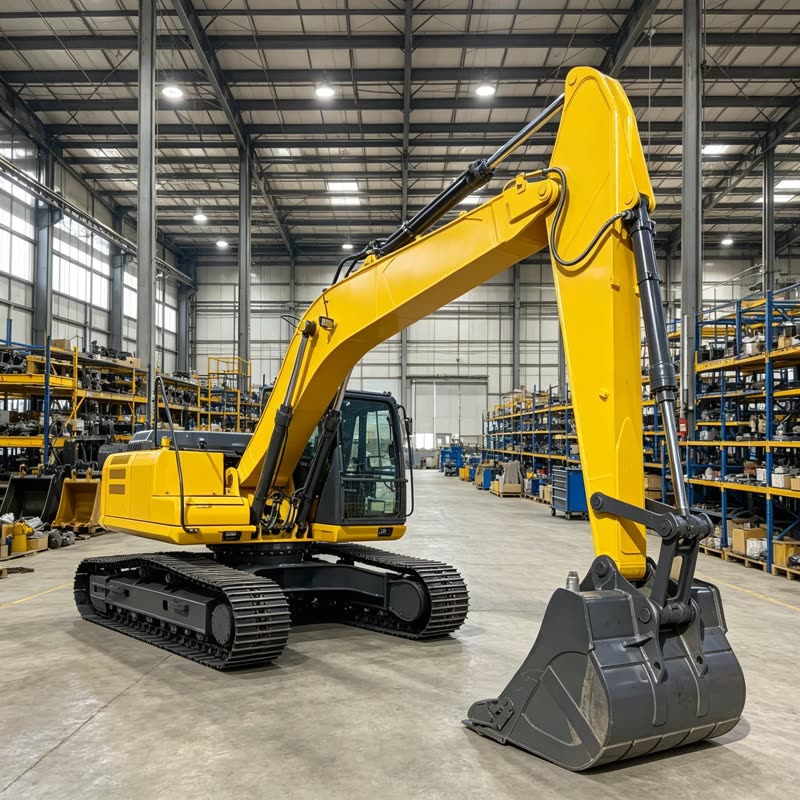

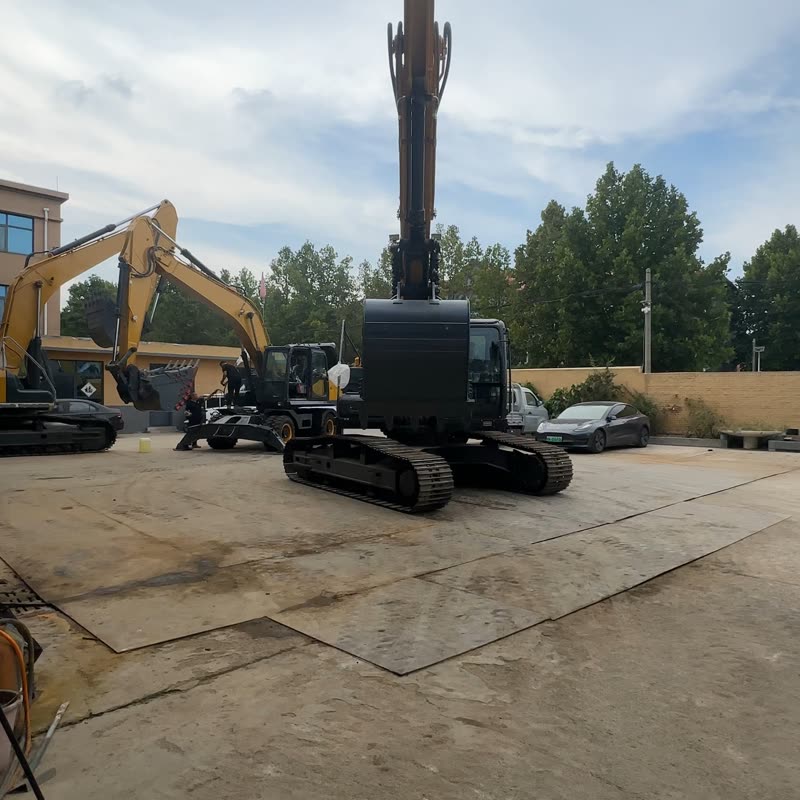

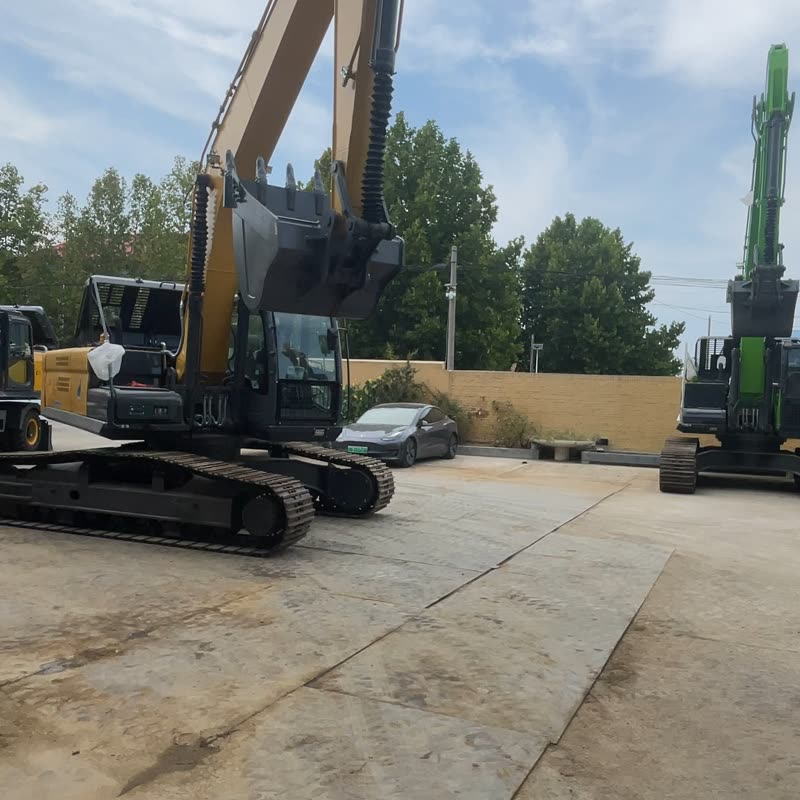

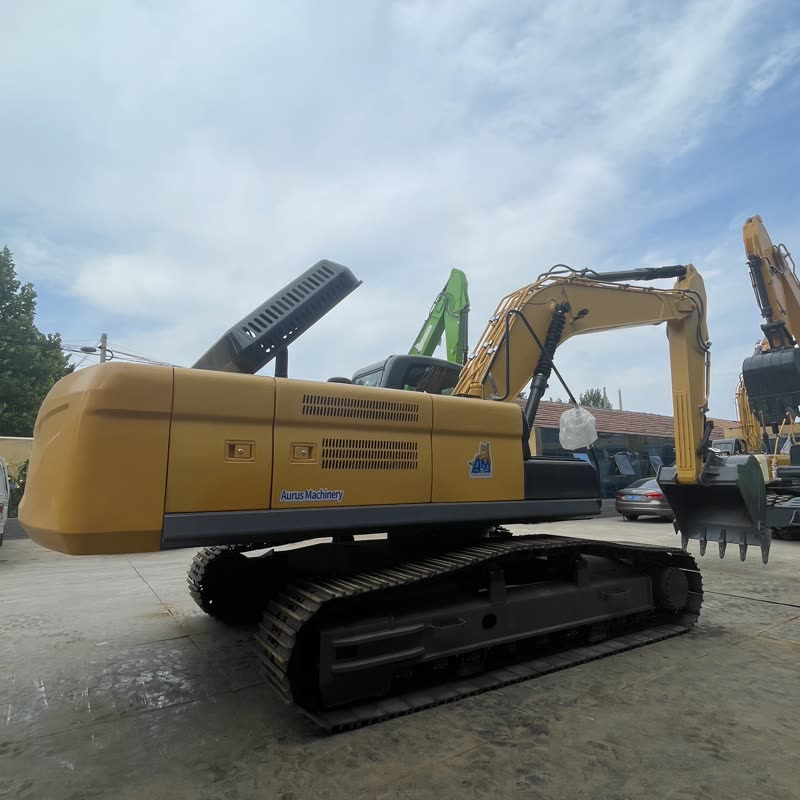

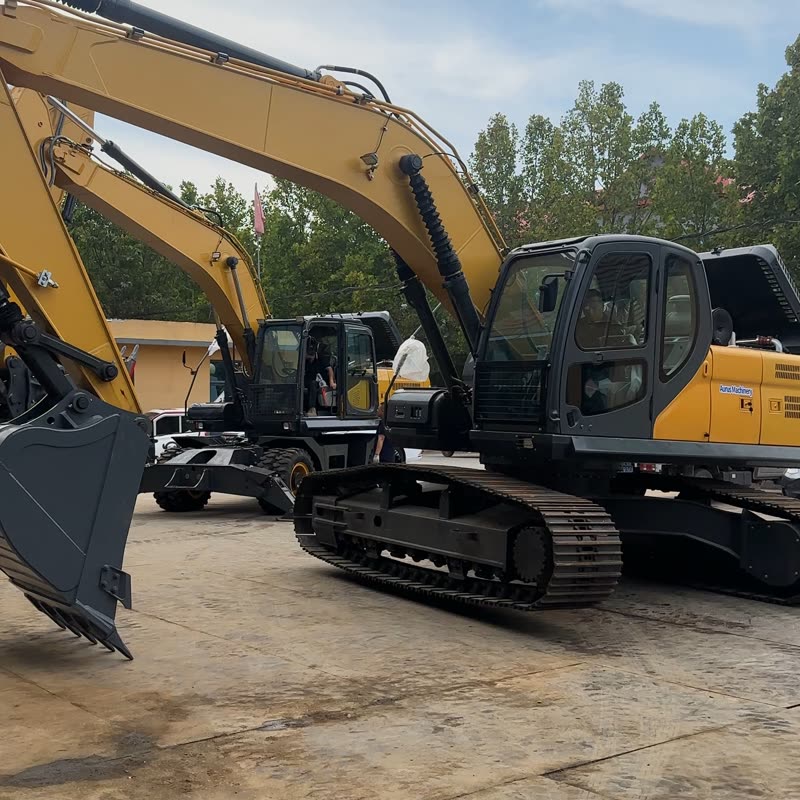

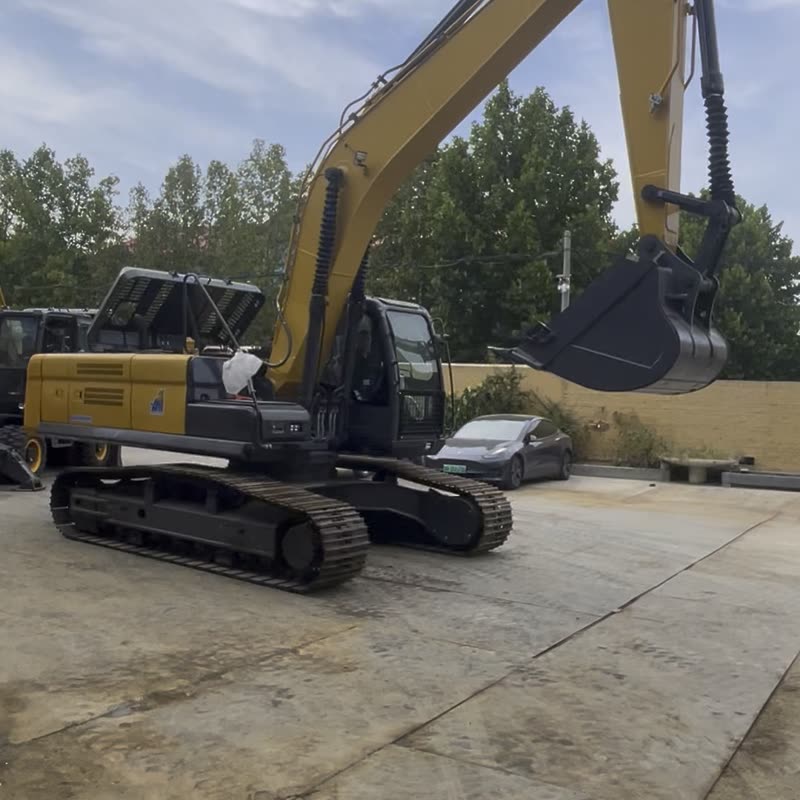

T260 CRAWLER EXCAVATOR

Key Specifications Overview

Operating Weight: 25,500 kg

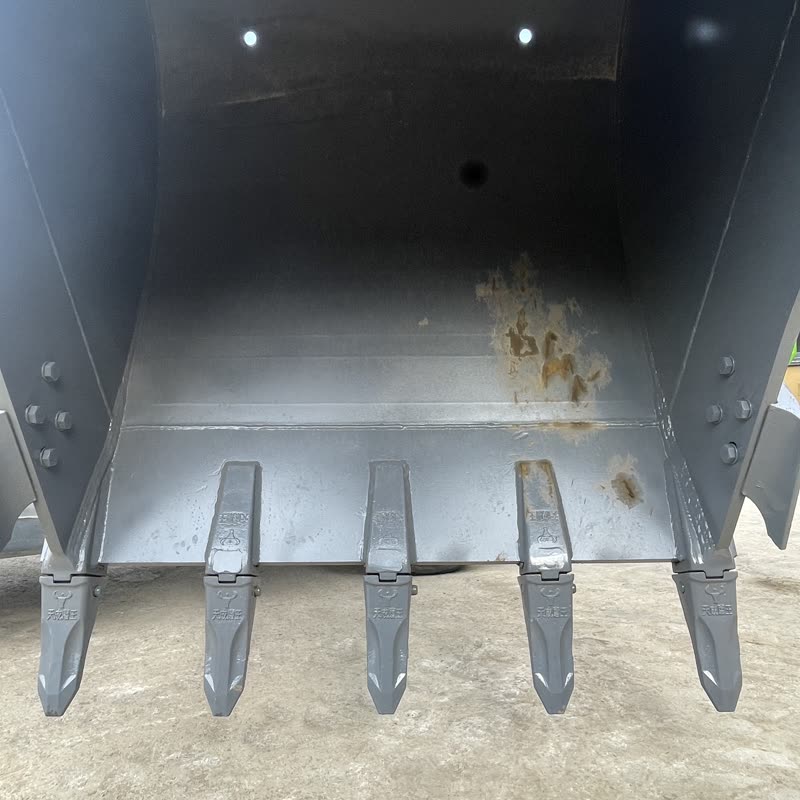

Bucket Capacity: 1.35 m³

Max. Digging Depth: 6,720 mm

PRODUCT HIGHLIGHTS

01 MINING & LARGE EARTHMOVING
Designed specifically for mining and large earthmoving customers, with high operating efficiency and low fuel consumption.

02 LOAD SENSITIVE SYSTEM
Load sensitive system ensures short cycle time and high operating efficiency.

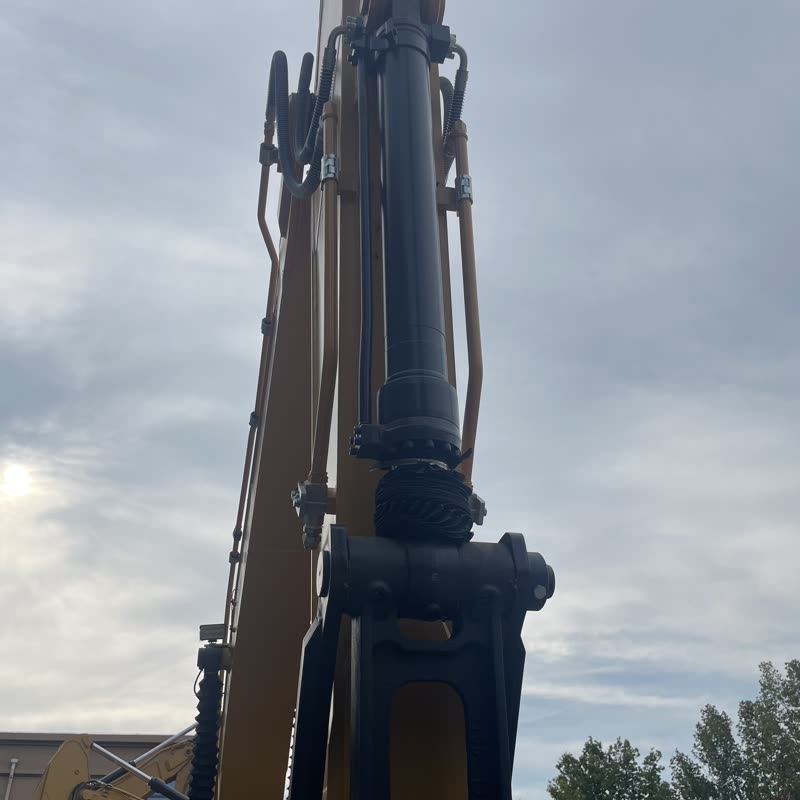

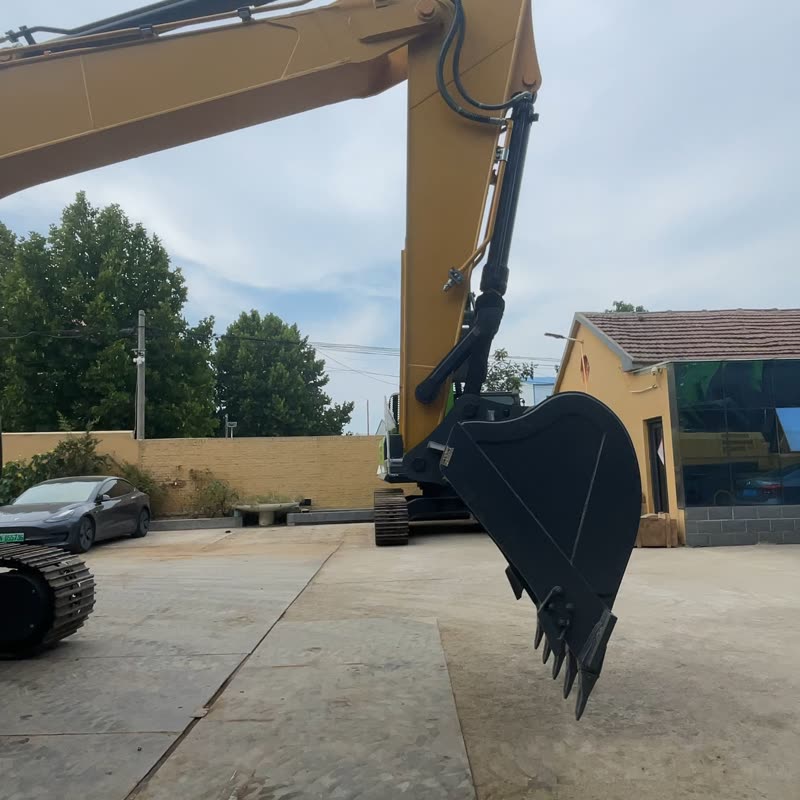

03 REINFORCED BOOM & ARM
Standard anti-collision beam and reinforced boom/arm design greatly improve service life.

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS

Specification	Value	Specification	Value
Engine Model	CUMMINS 6BTAA5.9	Engine Power	153 kW / 2200 rpm
Operating Weight	25500 kg	Bucket Capacity	1.35 m³

DIMENSIONS

Specification	Value	Specification	Value
Shipping Length	10300 mm	Boom Length	5900 mm
Shipping Height	3250 mm	Arm Length	3000 mm

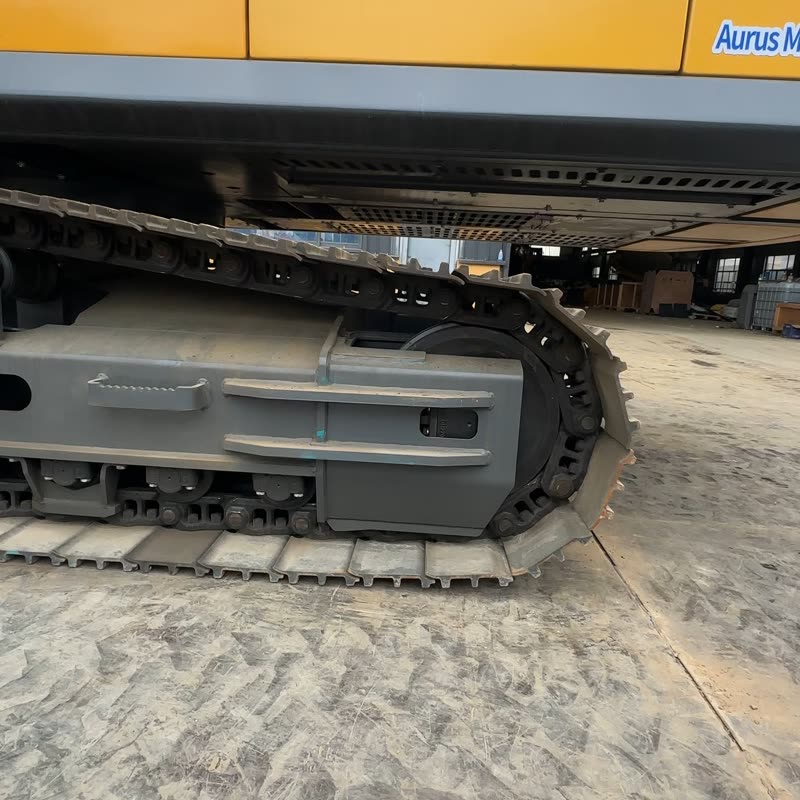

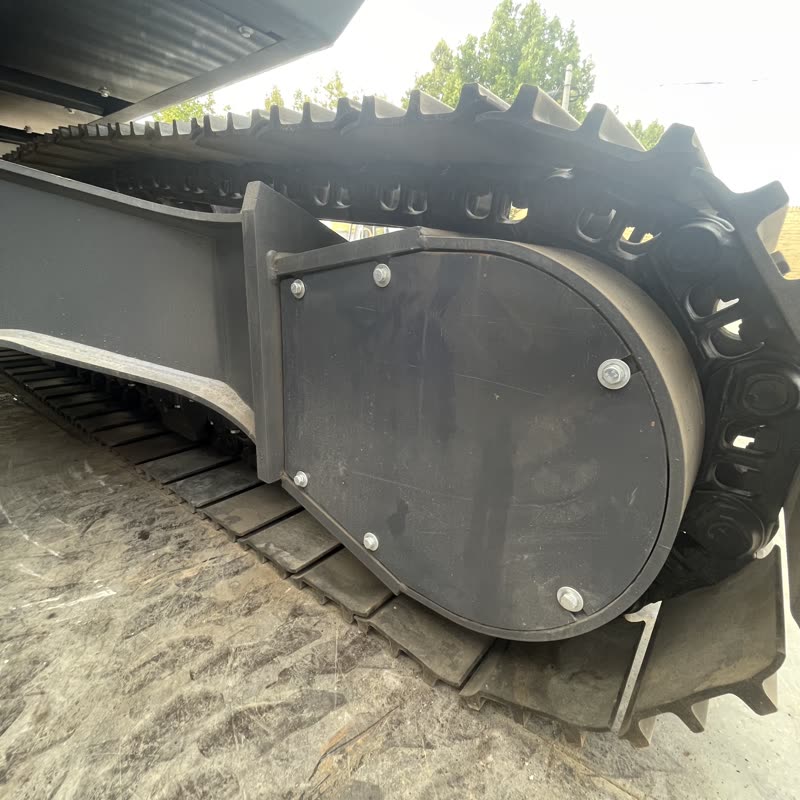

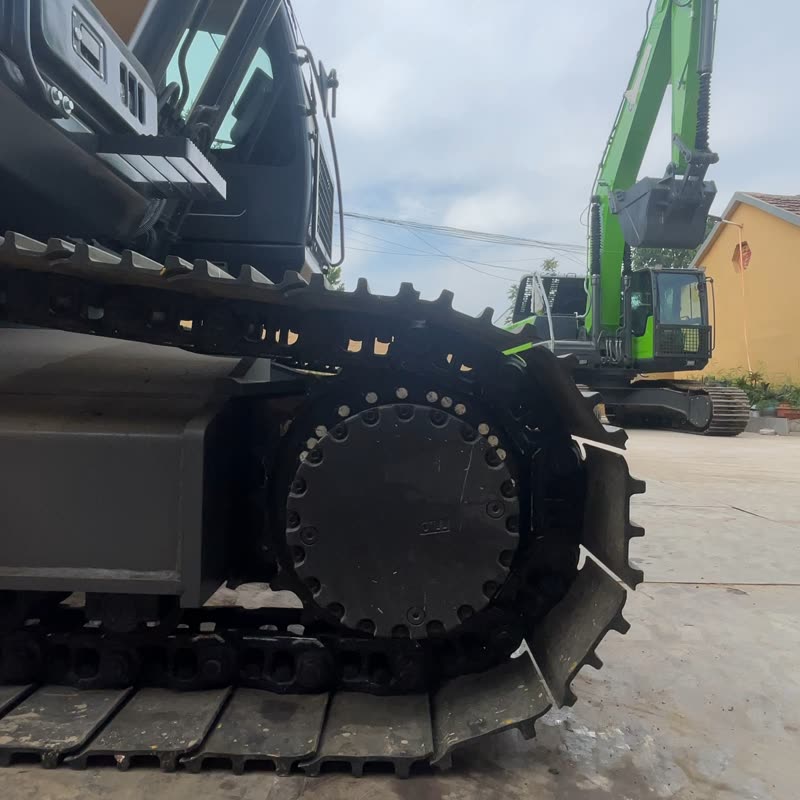

Overall Width	3195 mm	Track Length	4450 mm
Turntable Width	3045 mm	Gauge	2590 mm

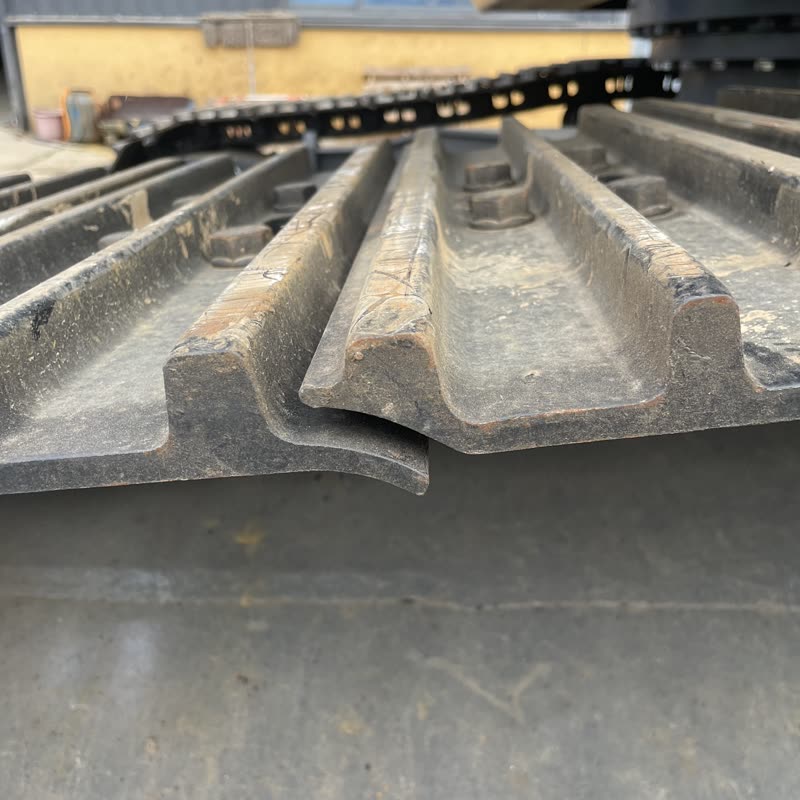

Track Width	600 mm	Landing Gear Height	2980 mm
Rear Swing Radius	3105 mm	Min. Swing Width	3880 mm
Counterweight Clearance	1096 mm	Min. Ground Clearance	470 mm
Hydraulic Oil Tank	250 L	Fuel Tank	380 L
Gradeability	>=35°

WORKING RANGE & PERFORMANCE

Specification	Value	Specification	Value
Max. Digging Radius	10225 mm	Max. Digging Height	9756 mm
Max. Digging Depth	6720 mm	Max. Dumping Height	6830 mm
Hydraulic Pressure	32.34/34.3 MPa	Hydraulic System Flow	2×230 L/min
Bucket Digging Force	176.4 kN	Arm Digging Force	126 kN
Swing Speed	0-10.7 r/min	Travel Speed	5.4-3.4 km/h
